- Model: FLD10GS
- Price: USD139
This single shaft motor can be with assembled with 9 inch,10inch, 12 inch, 13inch, 15inch and other kinds of different tires. It is a good electric small ATV, UTV or mower and so on. This is a gearless mono shaft motor with high speed 25km/h to max 40km/h. We have many other optional tires. Buy online here: 350w-800w 10 inch tubeless air tyre scooter hub motor.

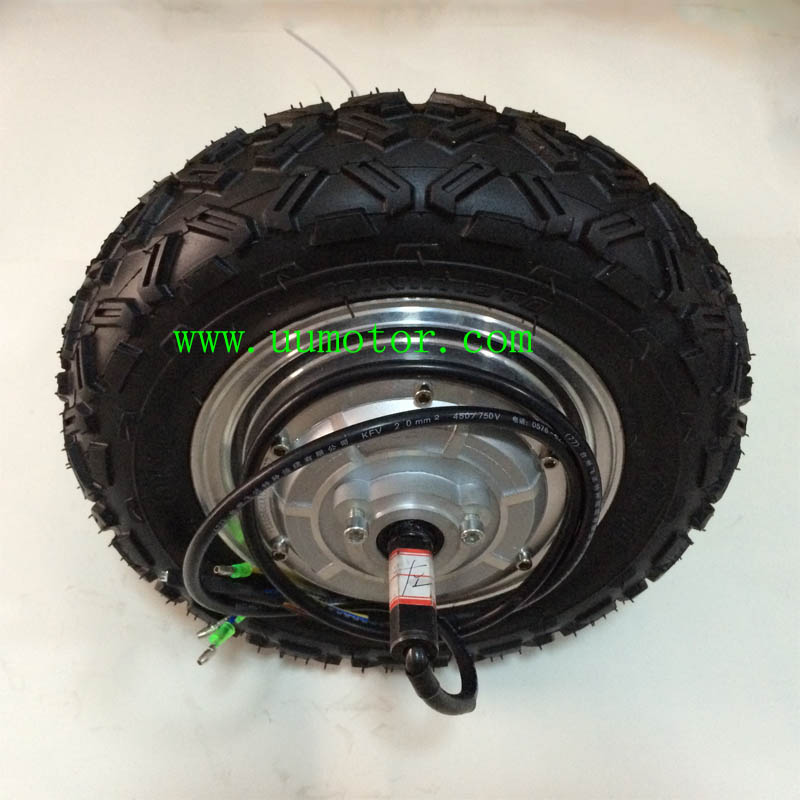

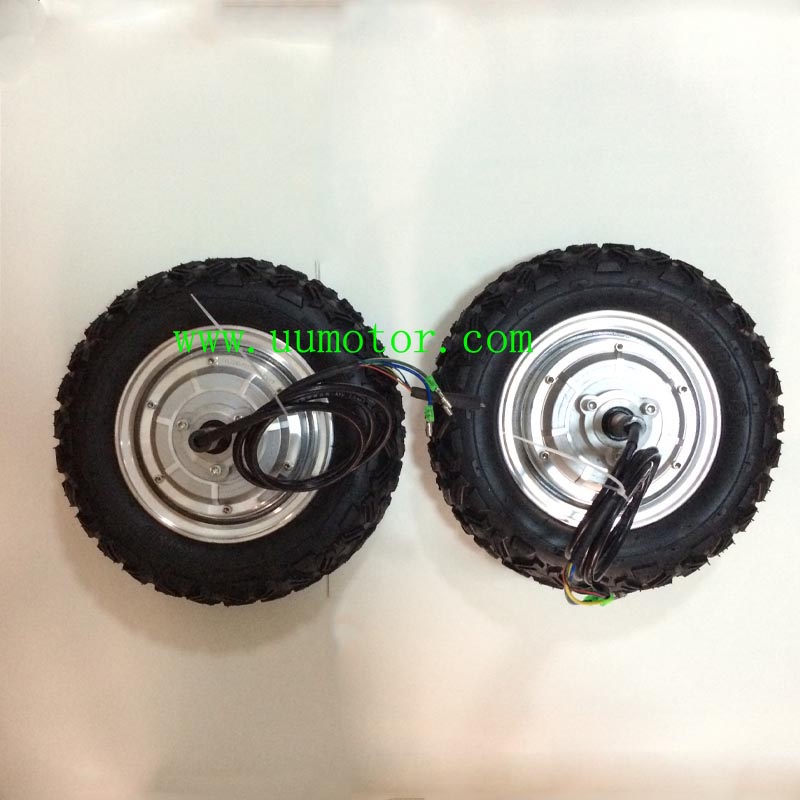

10 inch vacuum tire wheel hub motor
Brake mode:Disc-Brake
Tyre: vacuum tyre (10X4.0-6)
N.W.: 5kg(with tyre)
Diameter with tyre: 255MM
Rated voltage: DC 24/36/48V
Rated power:350-1000W
No-load speed: 400-1500rpm
No-load current: 0.4-1.4A
Efficiency： ≥84%
The 10 inch single shaft motor drawing details:
can i use it with Spintend Ubox Lite 100V/100A?
that may be too powerful, but you can set the current lower for this motor.
does it include the tyres?
Yes,it is include the tire
Does this motor have hall sensors? The product title says that it does, but the URL and page to buy it seem to indicate that it does not have hall sensors.
it has hall sensors.
Does this model have ip66?
Would it be possible 100W?
100w is ok, but what speed do you need?
please email at sales@uumotor.com and we have engineer reply you.
Thanks for answer. One more question, if You could me help? Could this motor drive (http://www.ebay.com/itm/50A-Dual-Channel-H-Bridge-Motor-Driver-Module-for-Arduino-Robot-Chassis-Servo-/171811293454?hash=item2800c0490e:g:naYAAOSwpdpVbCPn) drive 2 motors HL10GS (36 V)?
Regards,
NO, this motor controller is 12V controller.
Sorry for I`m bothering You, but I really need a solution for management with this motor. Now I found another motor drive ( http://www.ebay.com/itm/3v-36V-Dual-15A-H-Bridge-DC-Motor-Driver-30A-for-Robot-Car-Arduino-Compatible-/400569497467?hash=item5d43cd777b:g:DwgAAMXQlgtRonPa) . Is it enough for using with 2 motors HL10GS (36 V)?
Regards,
We have the motor 10inch 250w 15km/h, but we have no the controller which can be managed via cellphone.
Yes, it is can be make with 120mm disc brake plate.
Hello Eko Henfri, we have replied you from our email.
The gear ratio is 1:4.3
Hello Thierry,
For the two motors’ shipping cost will be USD140 to France. The 9 inch motor is not available now. The 9 inch motor is more powerful.
For the data sheet, you may refer to this
This motor is good for you.
For the completed kit price and list, you may refer to this link https://www.uumotor.com/10-inch-250w-brushless-electric-scooter-kit-hall-sensorless.html
