10 inch single shaft reversible geared hub motor

Home » hub motor » wheelbarrow motor » 10 inch single shaft reversible geared hub motor
10 inch low speed high torque motor
  • Model: KN69070S (WB10S)
  • Price: USD160

10 inch single shaft 36v-48v 500w off road geared hub motor for wheelbarrow, it is geared motor, revresible. It can be used for electric wheelbaorrows, mobilities, wheelchairs, agriculture tractors and so on. We also have the same power and speed dual shaft 10 inch fat tire geared motor. There you will find all our other 10 inch motors.

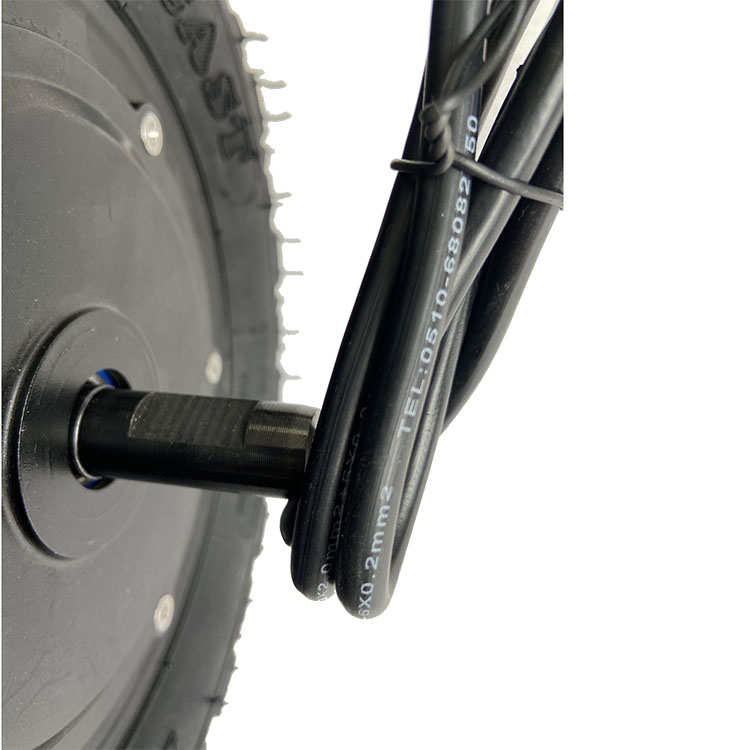

Motor: 10 inch Brushless Geared single shaft hub Motor
Hallsensor: YES (5 hall sensor wires)
Brake type: Disc brake or e braking
Motor wheel size( include the tire): 10 inch off road tubeless air tire
Tire Model: 90/70-6 Vacuum tire(250mm diameter)
Max Torque: 80 N.M
Rated power : 500W
Rated voltage :36V/48V
No-load current: <1.5A
pole pairs: 10
gear ratio: 5:1
Speed : 7-15km/h
Load Weight: 100kg-150kg
motor weight with tire : about 6kg

Optional: 1024 lines encoder, temperature sensors. available upgrade: max 100N.m, different shaft, e brake version.

For the 10 inch tires, we usually has 4 types.

One response to “10 inch single shaft reversible geared hub motor”

  1. looking to use this wheelbarrow e motor to power my boat dolly (200 lb) boat. seeking advice on how to adapt/install?
