12 inch built-in brake EMB 24v 250w 8km/h electric wheelchair hub motor

Home » hub motor » wheelchair motor » 12 inch built-in brake EMB 24v 250w 8km/h electric wheelchair hub motor
  • Model: PYW12
  • Price: USD165

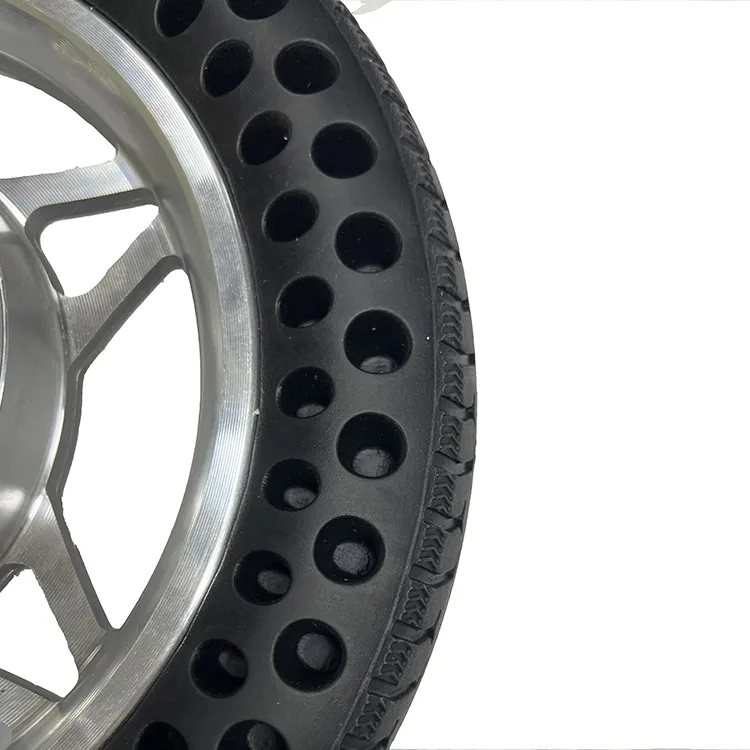

12 inch single shaft geared hub motor, with built-brake, which is good for electric wheelchair, AGV, robot and so on. It is ok to install with air tube tire or solid rubber tire. Usually, we sell this motor with tire.

It is ok to customize the speed and also the voltage. Any way, the most common motor data we produce is as follows:

Rated Voltage(V): 24V
Rated power(W): 250W
Wheel Size : 12″ with tire
Rated Speed(km/h): 8km/h
Rated Efficiency(%): ≧84
Reduction Ratio : 1:4.4
Weight(Kg): 4.3kg without tire
Hall Sensor
Noise(db): <55db
Waterproof Grade: IP54

We does only have this 12 inch motor, in fact, we have a series of this new design. We have 8 inch, 10 inch and 12 inch of this built-in brake motor. Here is there drawing

8 inch geared wheelchair motor
10 inch wheelchair hub motor
12 inch electrtich wheelchair motor
