12 inch brushless electric wheelchair motor single shaft with Electromagnetic brake (EMB)

Home » hub motor » wheelchair motor » 12 inch brushless electric wheelchair motor single shaft with Electromagnetic brake (EMB)
  • Model: XD12
  • Price: USD165

It is a 12 inch light weight electric wheelchair motor. The motor with tire is only 2.9kg. This single shaft motor is for 24v 150W. It is a geared motor (gear ratio 17.5 )with Electromagnetic brake (EMB)function. Pole pairs:7.

This motor emb braking needs voltage supply is 24v, keep voltage 12v as most of emb electric wheelchair motors. The Brown wire is for B+, and the white wire is for B-.

If you like to buy the joystick controller, we could also offer you the whole electric wheelchair motor and controller set.

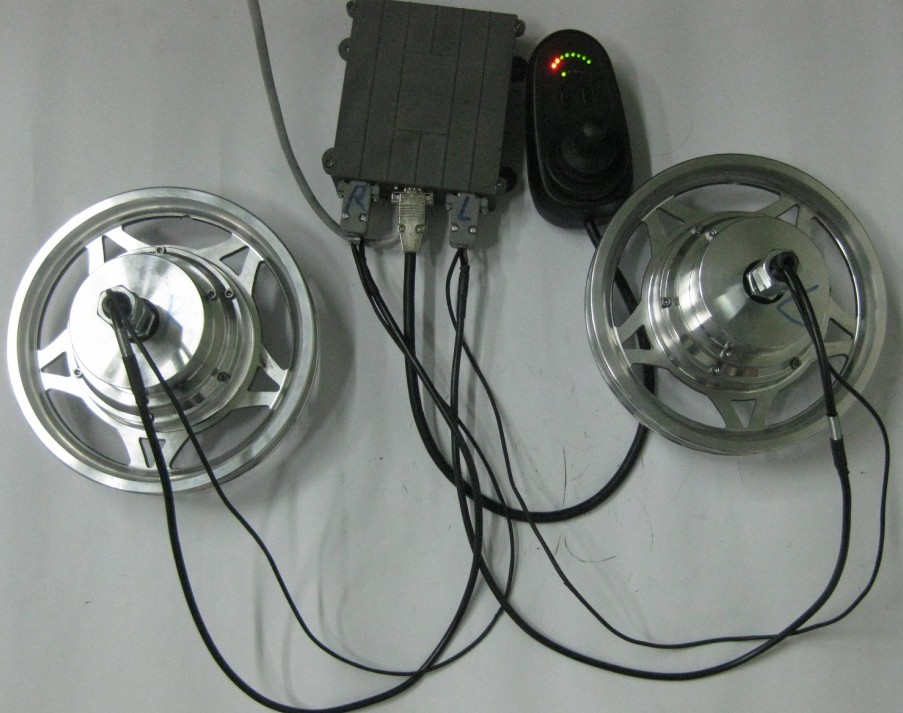

12 electric wheelchair motor and controller

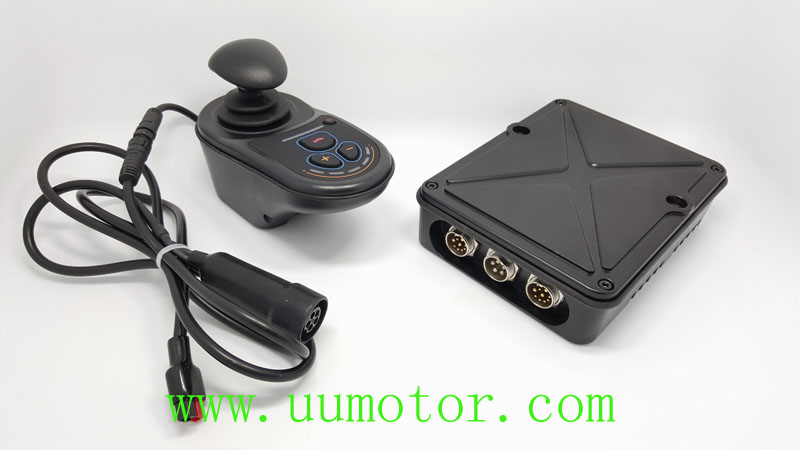

The updated joystick controller as follows:

XD-JS-C

The following is the motor specification:

Rated Voltage (V)24VCable Locationleft AND right
Rated Power (W)150WLength of the shaft60mm
Wheel Size12”Hall SensorOptional
Rated Speed (km/h)<8km/hSpeed sense insideOptional
Max torque30 N.mSurfaceSilver/Black painted
Reduction Ratio1:17.5Brake TypeElectromagnetic brake
Weight (Kg)2.9kgDesignDC brushless geared
Revolution(RPM)106rpmNoise (db)< 60
DriveRearWaterproof GradeIP54

We have a controller for this motor but it is not a joystick controller, it controls by throttle as follow:

The completed kit sample testing video:



45 responses to “12 inch brushless electric wheelchair motor single shaft with Electromagnetic brake (EMB)”

  1. I like the 12 inch brushless electric wheelchair motor single shaft with Electromagnetic brake (EMB)
    If i have a pair can they work from the same controller with the throttle and reverse.
    For a 350w 36v , And could you please give me a price fro Same. Thank you Malcolm Jacks.

      • Tony thank you for your answer to my request.
        Could i have a similar wheel ie, 12 inch single axle hub with reverse on controller with throttle. 350w 36v.and free wheel when motor is not engaged. with max speed not less than 12 mph.

          • Tony the question should have been , if i only get one (1) wheel and controller . Sorry.
            include price please.

            original question. ( sorry same question with only one wheel please)
            ( Tony thank you for your answer to my request. Could i have a similar wheel ie, 12 inch single axle hub with reverse on controller with throttle. 350w 36v.and free wheel when motor is not engaged. with max speed not less than 12 mph.)

          • Hello Malcolm Jacks,

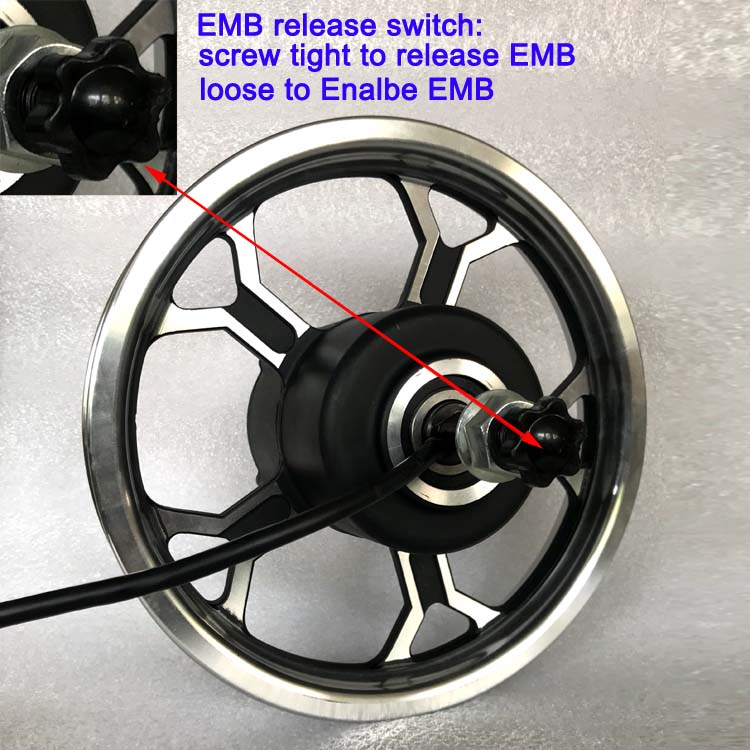

            I have seen that your ordered a motor from our online store. The motor is with EMB brake, it is only available now with 24v version, if you use 36v battery, the EMB will not work and if you do not need the EMB brake, you can manual shut off it manually.

  2. There seams to be a contradiction in the pictures, I dont want to have the wheel spread widened. one picture shows a closer fit than another which seems it could add an extra 2in wider wheel base which i dont want. That is why i preferred this design in the first place. I like the controller with the joy stick , and waiting for reply to my 36v battery comparability, plus shipping costs to UK> thank you.

  3. im interested in this item, but as it is is to slow. i have a 36v battery i would like to use with it. also are the tyres included and are they tube or tubeless. thank you.

    • It is just a motor, you need to buy extra controller and throttle. We have a complete kit. You could email us discussing details.

  4. Hello,
    I will like to know the total prices of 4 completed kit ( 4 Wheels 12 Inch 24v EMB with inside and outside tires + 4 Controllers + 4 controls throttle) please send me a offert with sending it to Netherlands.

    Greetings,
    Franck

      • Is to make a special project for Theatre show and is to make 4 objects with every object should have one single shaft 12 Inch 24v EMB wheel with one controller + one throttle.

        So if you can give a offert by email , for 4 complet set, Thanks.

        Greetings,
        Franck

  5. Hello
    we are JTS Co ,we are looking for BRUSH LESS GEAR MOTOR FOR ELECTRIC WHEELCHAIR.pls lets know more about it.also lets know if you will attend in ARAB HEALTH EXHIBITION in DUBAI ,we will attend also .pls lets know more about it.

  6. Dear sir/madam

    we need brush less gear motor for electric wheelchairs,pls lets know is it available now?
    and will you attend in ARAB HEALTH in DUBAI?

    your early reply would be appreciated

  7. Dear sir/madam

    we need brushless gear motor for electric wheelchairs,pls lets know is it available now?
    and will you attend in ARAB HEALTH in DUBAI?

    your early reply would be apprecaited

  8. Hello Sir
    I am Nara from Singapore. I am looking for 12 inch brushless electric wheelchair motor single shaft with Electromagnetic brake (EMB).
    Voltage :24V DC
    With 12″, lowest power,lowest speed, high torque Geard BLDC hub.
    Kindly let me know if it’s available, price for two pieces and leading time to Singapore.

  9. Hi there

    Can the speed be set? Like can you program in 2 kph? Also can they go in reverse? We want to make a high pressure sprayer that weighs 150Kg self-propelled at a fixed speed. Would these wheels work in that scenario?

    Cheers
    Chris

  10. I am interested in your 12 inch motor. I need two for a wheelchair application. Can you tell me which ones you have that would give me about 300-500 rpm at about 1000-1500W

    I will also need a joystick controller so I can control the two wheels to get both forward, reverse as well as turn in the wheel chair.

  11. 1, Voltage? Wattage? : 36V 250W
    2, Speed? N.m? RPM : 30N.m ,450RPM
    3, Pcs : 20pcs
    4, Brake : Electromagnetic brake
    5, Axis : Single shaft(cable)
    6, Opptional function of Controller : Change of rotation of motor
    7, Motor Size : 12″(Used to air tube tire (12.5mmx2.25mm))
    Such as (Model : 12 inch brushless electric wheelchair motor single shaft)
    8, Can I attach to the mechanical disc brake to motor?
    9, Can you please tell me shipping period and price, motor drawing image ?

  12. We want bldc hub motor.So is it available?
    Specfications
    48 v
    800/1000w
    Hub size 20/24 inch diameter

  13. I have yet to get these motors up and running on my Glide G4 (Aussie Made)lightweight power chair for a few reasons. Where the shaft for the motors bolt to the mounting plate on the chair makes the wheels stick out to far so new plates had to be bent up to bring them in as to match original chair width.

    The motors braking apparently comes from what they call compression. Apparently if you feel how much “compression” these brushless motors have you will realise you don’t need brakes. With the motors not connected they just free wheel which is opposite to what most power chair users are use to. Electromagnetic brakes on when power is cut. I will let you know how this works in the real world.

    The joy stick controller was disappointing in that it has no female charge socket built into it which means having to set up a charge point coming direct of the batteries.

    The power controller unfortunately use screw on connectors that are difficult to get the male version of for your chairs battery harness rather than good old Anderson connectors. It would help if the controller came with one for your battery wiring loom. The Joystick and controller are of basic construction.

    I am pair all this up with Fusion Lithium (LiFePO4 batteries) made in Australia to see how it all works. I will write somw more when it up and running.

    Im hoping the brushless motors wont be notchy at low speed and not suffer from a lack of torque which are problems evident from the past.

    Anyway Cheers from Down Under…Ozzy Ozzy Ozzy

  14. I would like to see a CAD drawing of the hub motor with measurements as to ascertain the full width of the wheel.
    I would also like to know the manufacturer and model of the controller set and whether a programmer is available for the controller set so it can be customised for the needs of the user. Warranty details on this items is also a need to know.
    On the face of things it appears UUMOTORS has a great product here at a reasonable price but now I will test it in the real would and let you know how reliable and how well it performs.
    Cheers from AU

    • Hello Bruce, please email us at sales@uumotor.com and also the electric wheelchair motors are our new products, but I CAN NOT tell you the joystick controller supplier. It is our business secret.

  15. I would like to know a little more. – whether it is waterproof/dust proof, -torque(N.m) – max speed is 12 km/h is it possible to make it 20 km/h ?

  16. Hello,

    I’m interested in adapting this to a wheelchair. When you say electromagnetic brakes – is this like push solenoid? Sorry, I’m not very technically minded I’m afraid, my conventions with brakes being disc and drum ones.

    Regards

  17. Hi Ana

    We need to e-bike kit, but the engine must be subject in one arm. I watched without a kit for e-.bike have this engine. However, I see that produce these types of engines. Could you put together a kit for e-bike that includes a motor for holding one arm?

    We need it rather urgently.

    We welcome your comments

    thank you very much

    regards

    • Hello Lucas,

      It is a pity that this mono shaft motor speed is too lower, it is for electric wheelchair, not for the electric bikes.

  18. Model: HUB12EW
    tekerlekli sandalyeme uygulamak için satın almak istiyorum. ücret , ödeme ve kargo konusunda bilgi almak istiyorum.

    Model: HUB12EW
    I want to buy to apply the wheel chair. fee, payment, and shipping would like to receive information about.
