120N.m 12 inch 48v 1000w robot hub motor

Home » hub motor » Servo motor » 120N.m 12 inch 48v 1000w robot hub motor
  • Model: SV8H12
  • Price: USD380

Current:5-18A(peak 35A)
load:<300KG
Torque:70N.m(max 120N.M)
Tire Hollow rubber tire Diameter:300MM(12 inch)
Waterproof: IP65
Encoder:1024 line Magnetoelectric encoder sensor and hall sensors

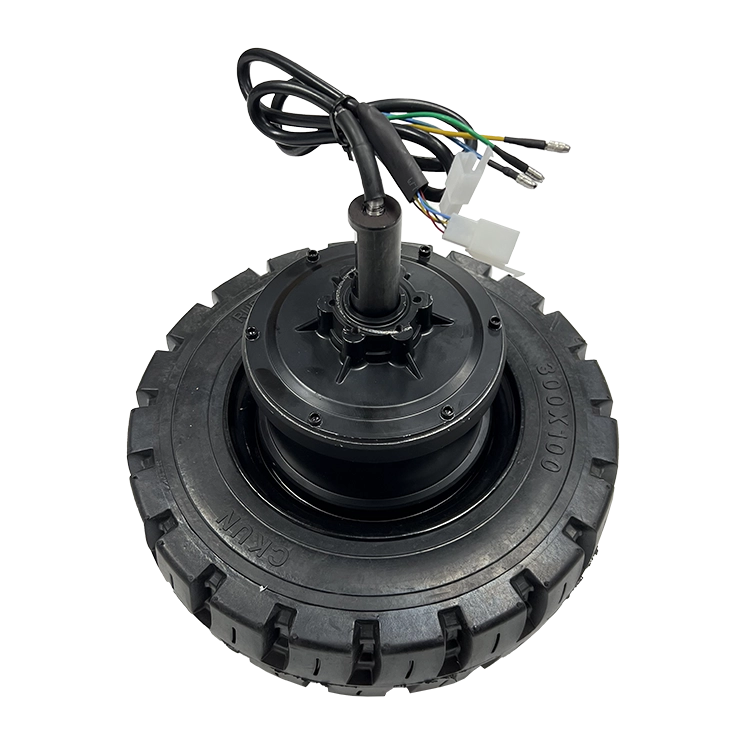

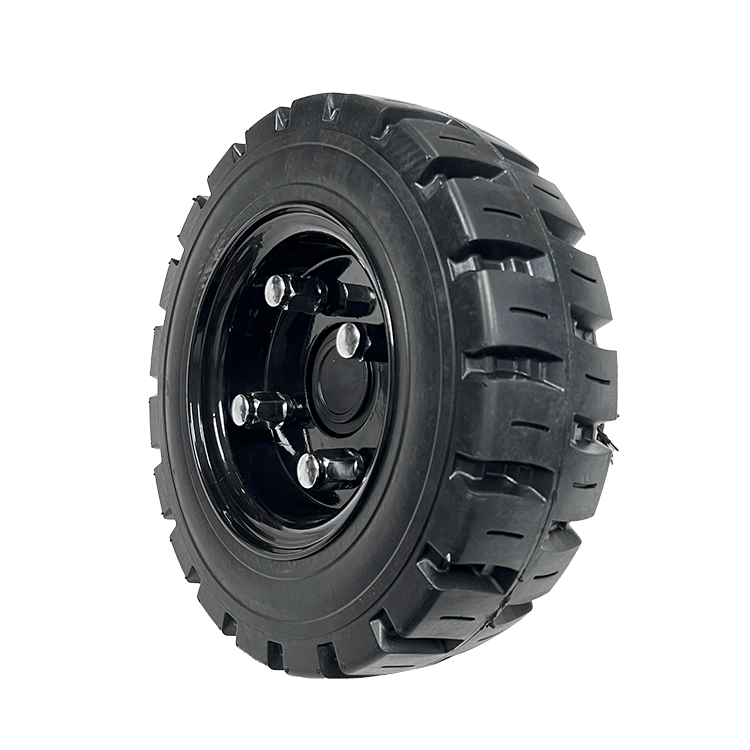

12 inch high torque slow speed gearless hub motor with encoder, 48v 1000w 70Nm servo robot motor, the rated torque 70 Nm, max torque 120N.m. It is a single shaft gearless, brushless dc servo hub motor with Magnetoelectric encoder. The rim is removable and 6.5 inch rim, it can be used for different tires and easy to replace the tires. It is good for argriculture robot, tractor and so on. We also have a commone bldc 11 inch hub motor, which is geared 48v 500w for electric wheelbarrows.

Voltage48VMotor weight10KG
Power1000 WattEfficiency>83%
Speed150-250RPMPole pairs20
Current5-18A(peak 35A)load<300KG
Torque70N.m(max 120N.M)TireHollow rubber tire
Diameter300MM(12 inch)WaterproofIP65
Encoder1024 line Magnetoelectric encodersensorhall sensors
