Home » hub motor » Servo motor » 120n.m 17 inch 1000w servo hub motor with encoder
- Model: SV8H17
- Price: USD385

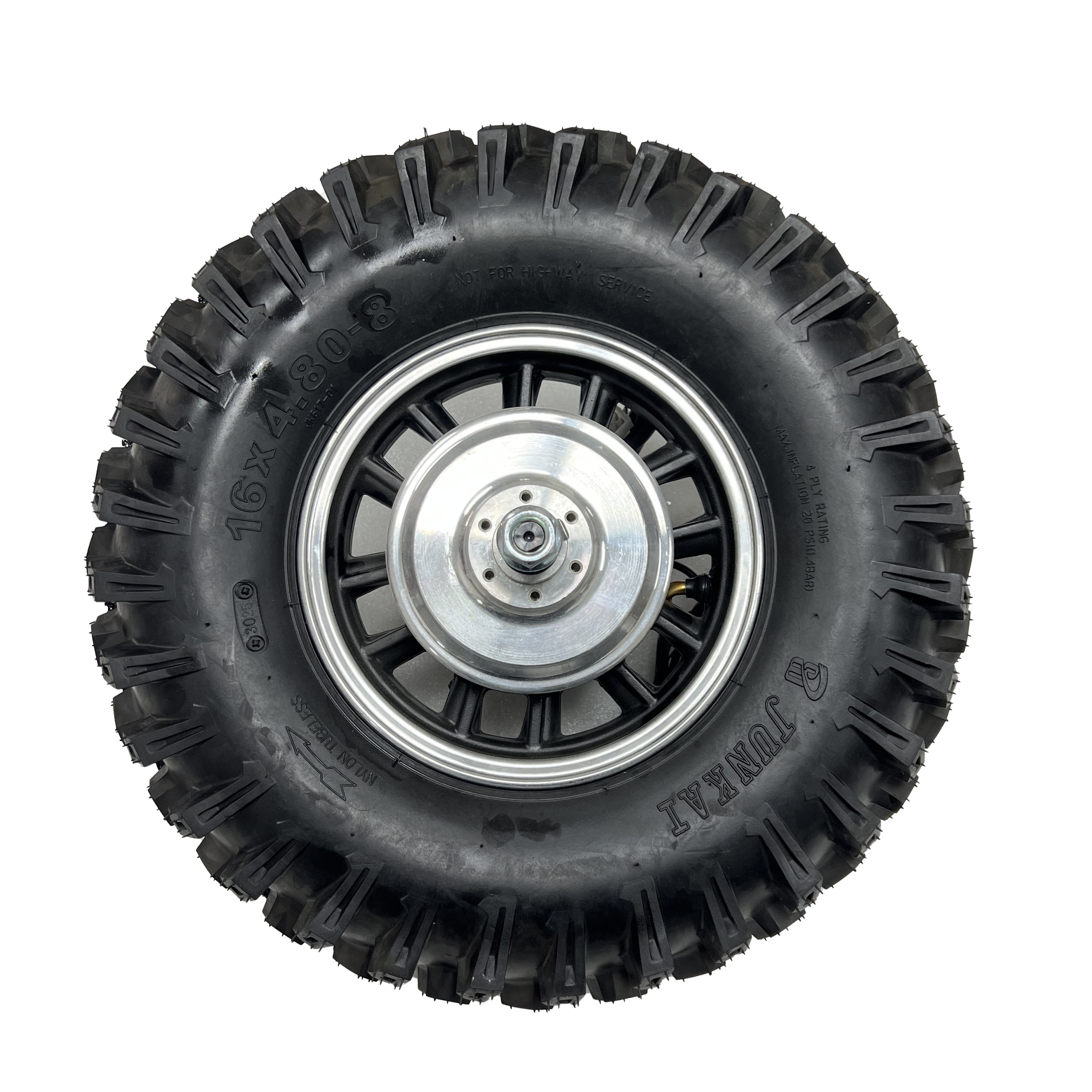

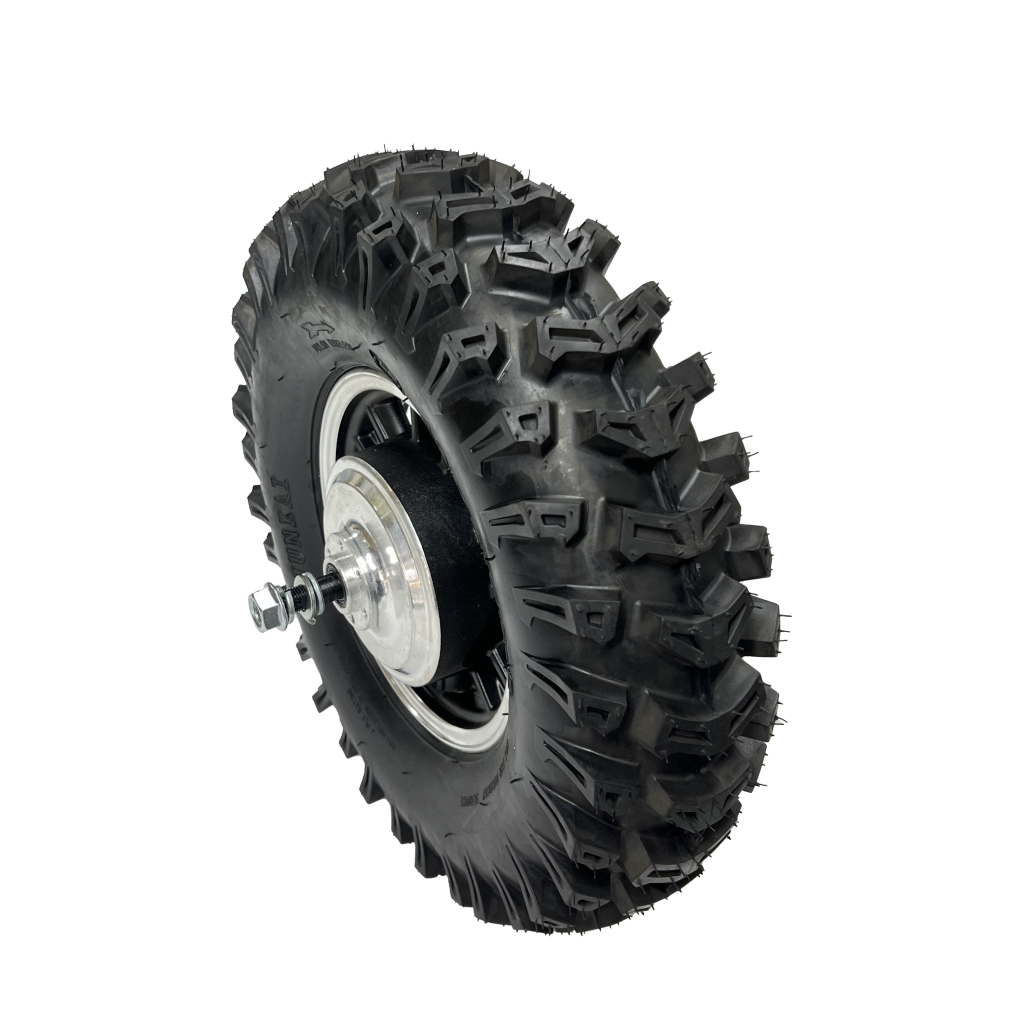

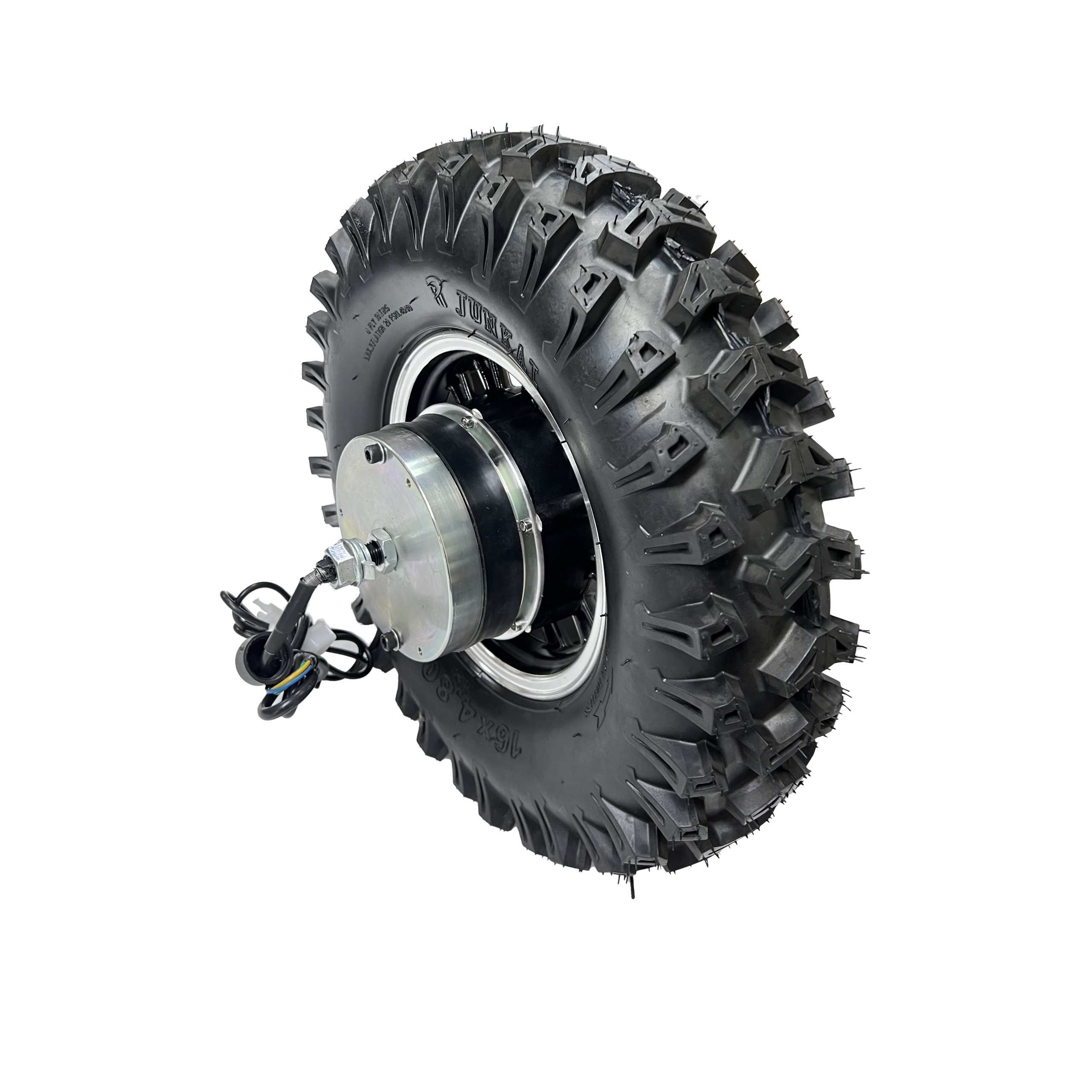

1024PPR 4096CPR high torque 17 inch 1000w tube tractor tire robot hub motor with encoder, the rated torque 70 Nm, max torque 140N.m. It is a single shaft gearless, brushless dc servo hub motor with Magnetoelectric encoder. The rim is 8 inch. Tire is 4.8-8 off road tat and big air tire. It is good for argriculture robot, tractor and so on.
We also have this motor with 12 inch, 13 inch, 14 inch, 15 inch and 16 inch tires.
| Voltage | 48V | Motor weight | 12.15KG(packing weight 20kg) |
| Power | 1000 Watt | Efficiency | >83% |
| Speed | 100-200RPM | Pole pairs | 20 |
| Current | 5-18A(peak 35A) | load | <300KG |
| Torque | 70N.m(max 140N.M) | Tire | Hollow rubber tire |
| Diameter | 430MM(17 inch) | Waterproof | IP65 |
| Encoder | 1024 line Magnetoelectric encoder | sensor | hall sensors |
