- Model: M3PH(KN6135D)
- Price: USD160
The motor has updated to max torque 80N.M 48V 220rpm.

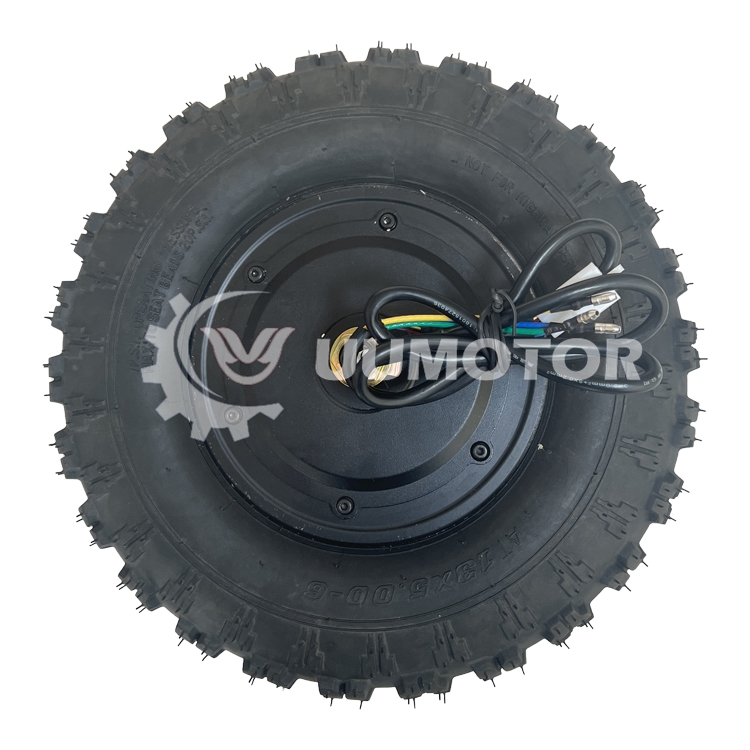

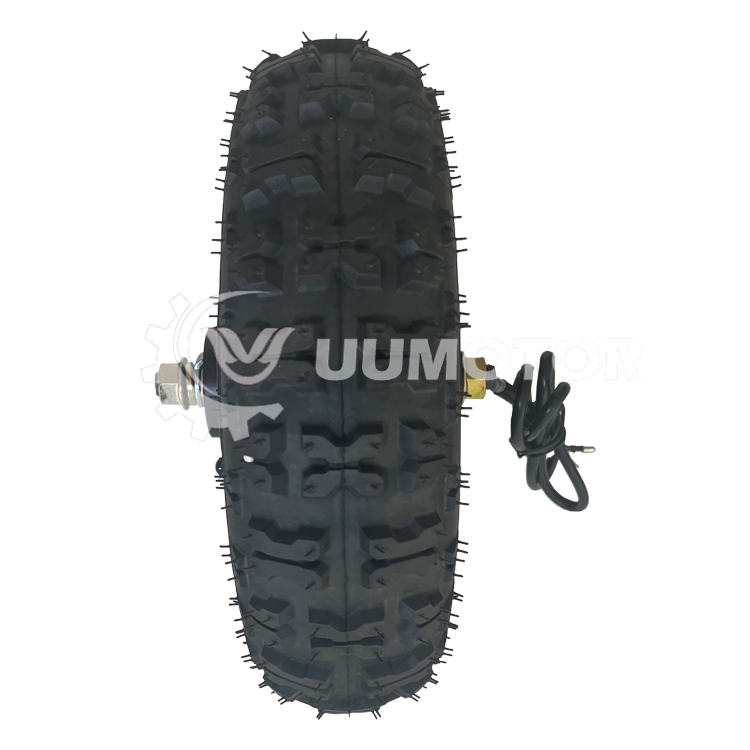

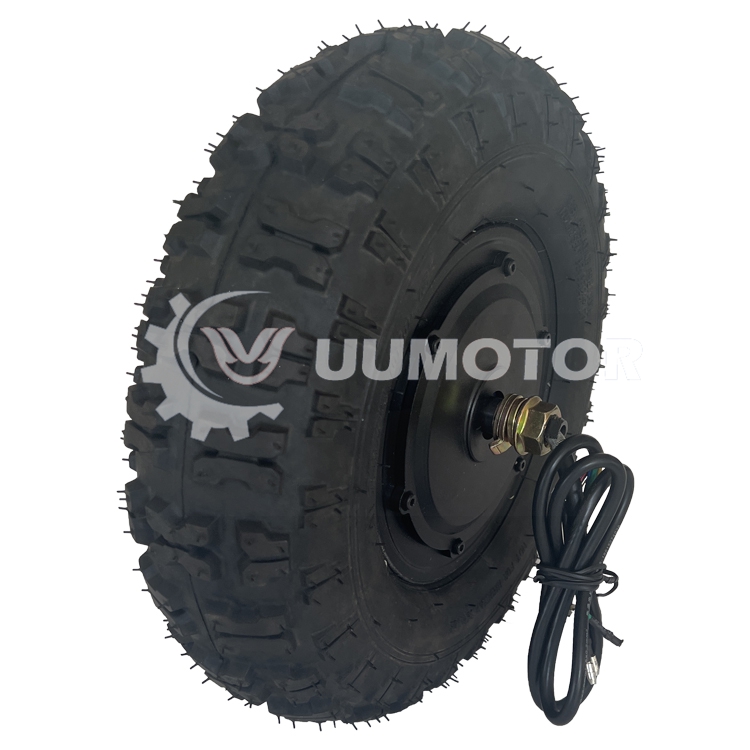

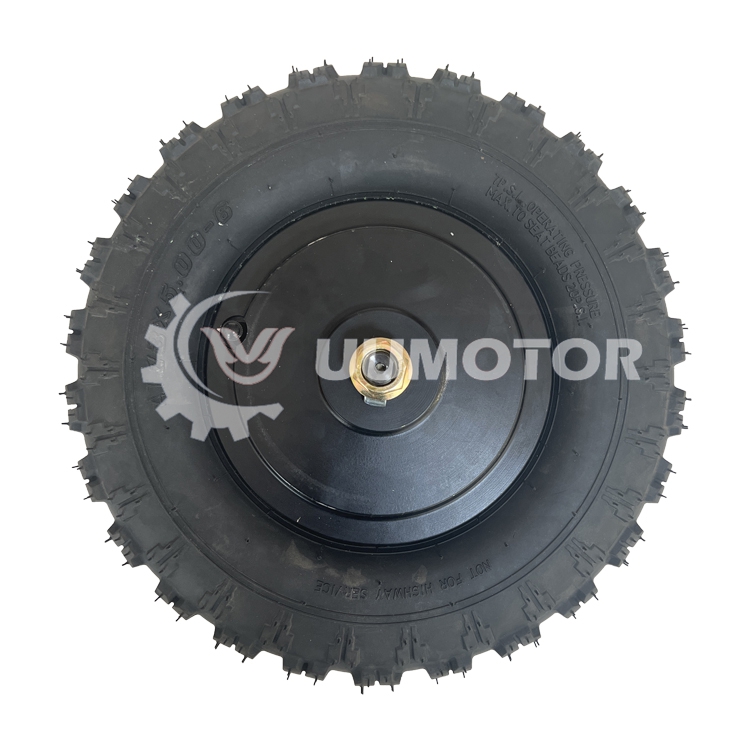

13 inch 48v 500w powerful high torque geared hub motor for electric wheelbarrow trolley and hand truck. Rated speed is about 7-10km/h. it can be also other speed as per your request. And We also have a 13 inch single shaft wheelbarrow hub motor.
Motor: 13 inch Brushless Geared Motor or other tire size
Hall sensor: YES (5 hall sensor wires)
Brake type: Disc brake(dropout size 135mm), e braking(dropout size 115mm)
Tire Model: 13×5-6 Vacuum tire
Max Torque: 59N.M
Rated power : 500W
Rated voltage ：36V 48V
No-load current: <1.5A
Speed : 7-10km/h
Load Weight: 100kg-150kg

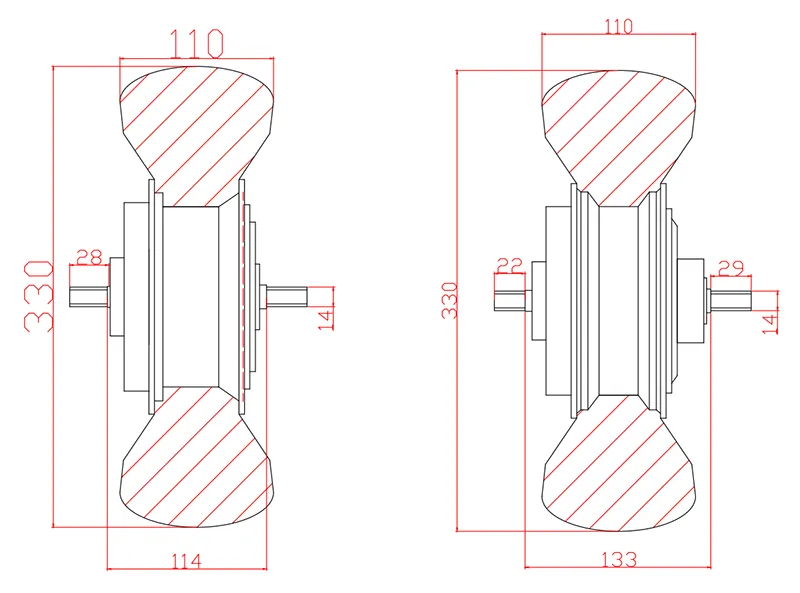

Dropout size : 135-145 mm
Weight : about 6kg
Hallo
I would like to use two of your 13 Inch Off Road Geared Wheelbarrow Hub Motors on a trolley. The frontwheels would be free spinning and the Sterling should be done by regulating the Motors. Can you offer a Controller that would be fitting to this idea?
Delivery would be to Germany.
Greetings
Andreas
Hello, we can provide such controller,but how would like to control speed? by joystick?
We are currently configuring our VESC controller for our motor application and have noticed that several key parameters are not included in the datasheet. To ensure optimal performance and proper integration with our VESC setup, could you please provide us with the following details:
Maximum Power Loss, Open Loop ERPM, Sensorless ERPM, Motor Poles
We are currently in the process of configuring our controller and noticed that several key parameters are not included in the datasheet. Could you please provide the following details:
Maximum power loss
Open loop ERPM
Sensorless ERPM
Motor poles
I need to know how is the working of the e braking
e brake means the controller to electric brake the motor, this requires the motor is gearless or geared motor which has no clutch for freewheel. Our geared motor has no clutch inside and it is ok to be controlled run forward and reverse.
