Model: WB13SR(KN6305)
Price: USD155

Max Torque: 80 N.M at 48V
Rated power : 600W
Rated voltage ：24V36V/48V optional
No-load current: <1.5A
pole pairs: 10
gear ratio: 5
Speed : 7-15km/h
Load Weight: 100kg-150kg
motor weight with tire : about 6kg

Due to the 13×5-6 tractor tire is no longer available, we have to upgrade our motor to new version tire to 3.5-6 and also new motor. The old WB13SR is not supplied any longer from UU Motor.

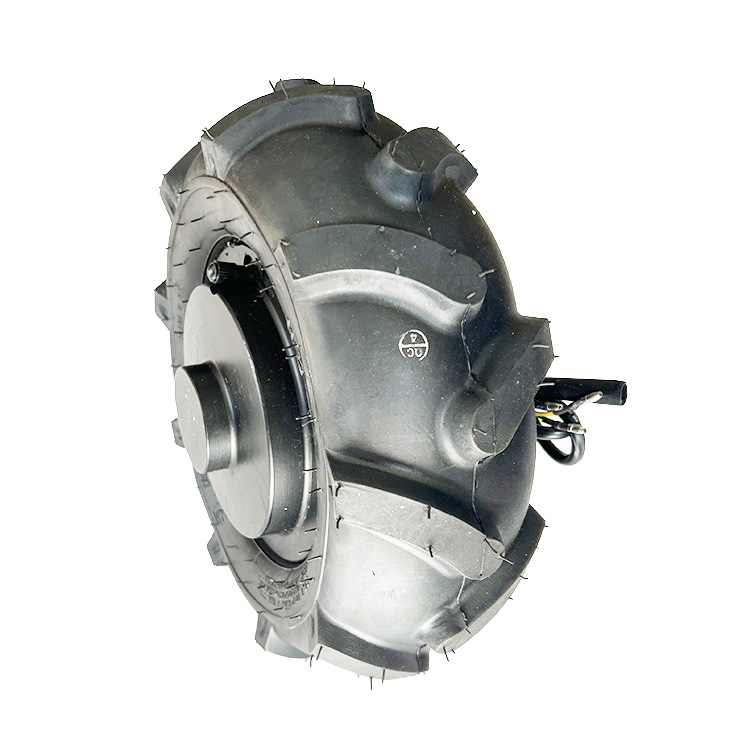

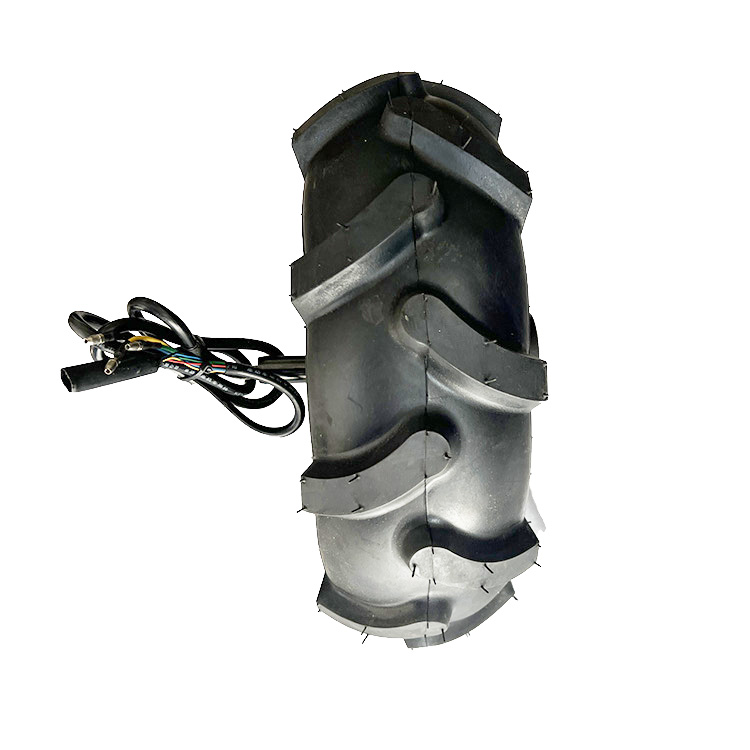

36v-48v 600w 13 inch brushless single shaft tractor tire geared wheelbarrow hub motor, it is geared motor, revresible. It can be used for electric wheelbaorrows, mobilities, wheelchairs, agriculture tractors and so on. We also have the same power and speed dual shaft 13 inch tractor tire motor.

Motor: 13 inch Brushless Geared single shaft hub Motor
Hallsensor: YES (5 hall sensor wires)
Brake type: Disc brake or e braking

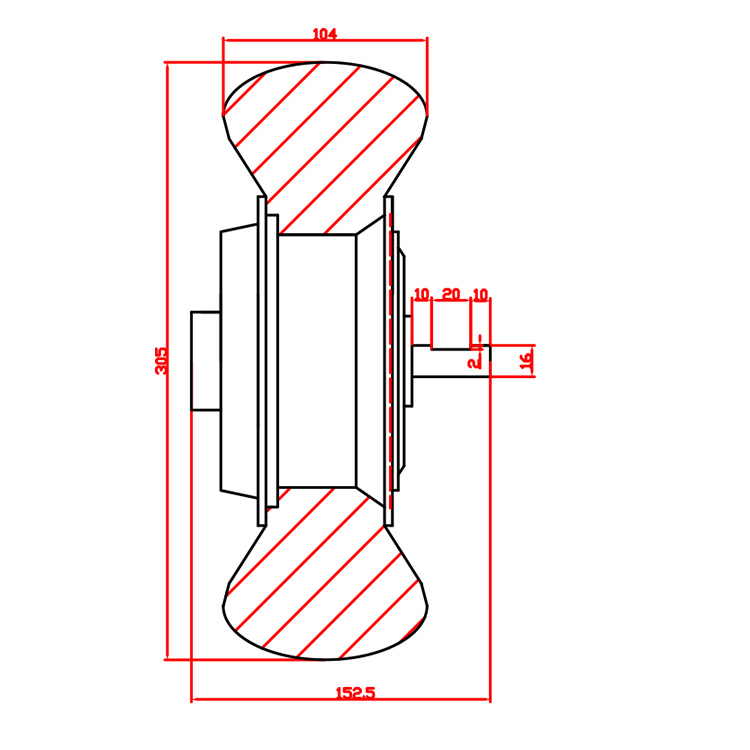

Motor wheel size( include the tire): 13 inch tractor tubeless air tire

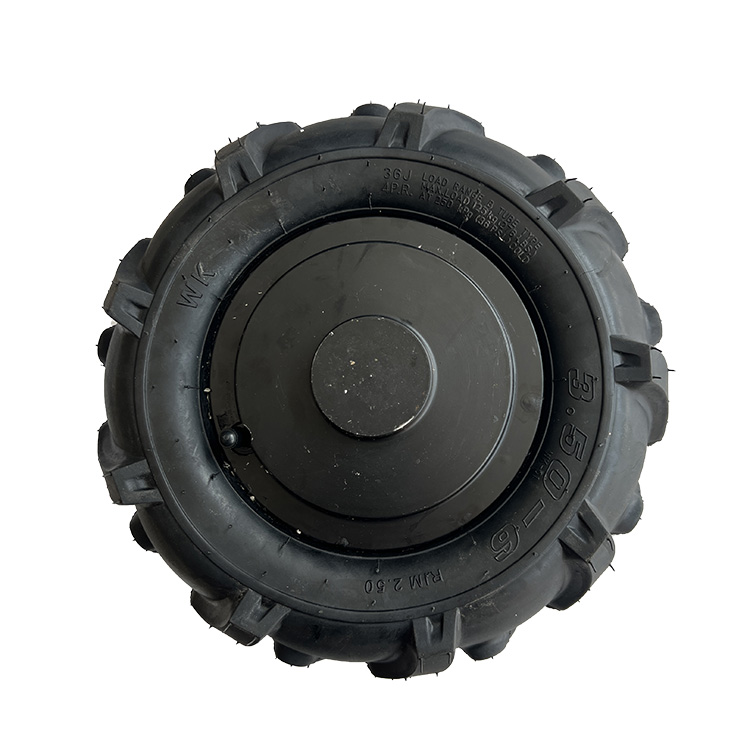

Tire Model: 3.5-6 Vacuum tire(305mm diameter)
Max Torque: 80 N.M
Rated power : 600W
Rated voltage ：24V36V/48V optional
No-load current: <1.5A
pole pairs: 10
gear ratio: 5
Speed : 7-15km/h
Load Weight: 100kg-150kg
motor weight with tire : about 6kg
