- Model: WB15S(KN6155)
- Price: USD155

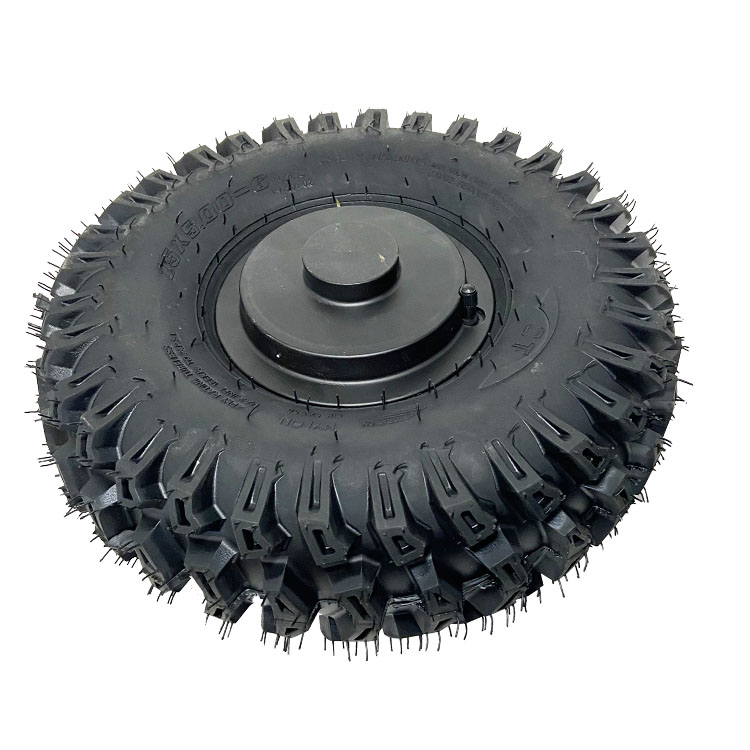

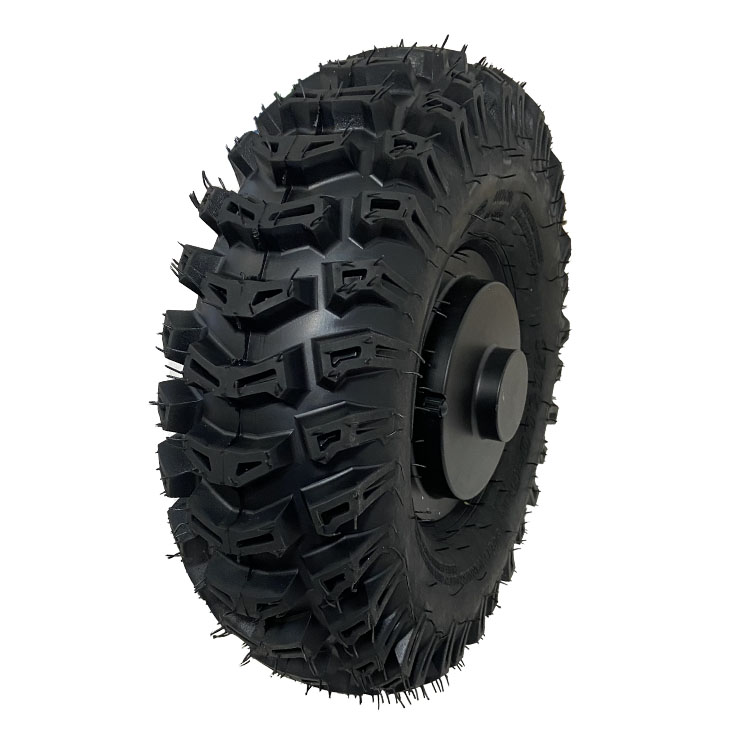

15 inch brushless single shaft wheelbarrow hub motor, it is geared motor, revresible. It can be used for electric wheelbaorrows, mobilities, wheelchairs, agriculture tractors and so on.
Motor: 15 inch Brushless Geared single shaft hub Motor
Hallsensor: YES (5 hall sensor wires)
Brake type: Disc brake or e braking
Motor wheel size( include the tire): 15 inch tractor tubeless air tire
Tire Model: 15×5-6 Vacuum tire(380mm diameter,110mm tire width)
Max Torque: 59 N.M
Rated power : 500W
Rated voltage ：36V/48V
No-load current: <1.5A
pole pairs: 15
gear ratio: 5
Speed : 7-15km/h
Load Weight: 100kg-150kg
motor weight with tire : about 7 kg
