- Model: PYW16
- Price: USD165

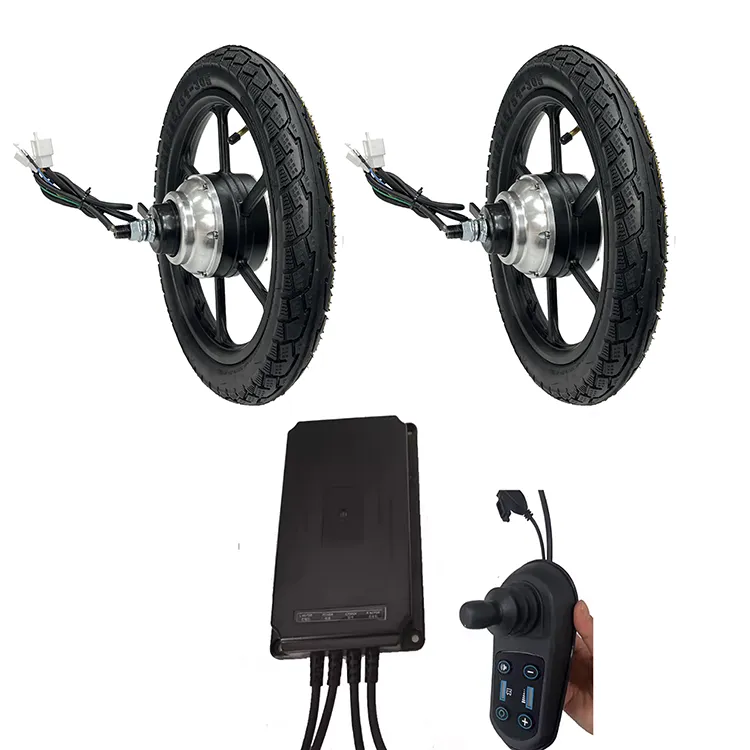

The 16 inch electric wheelchair is tube tire.

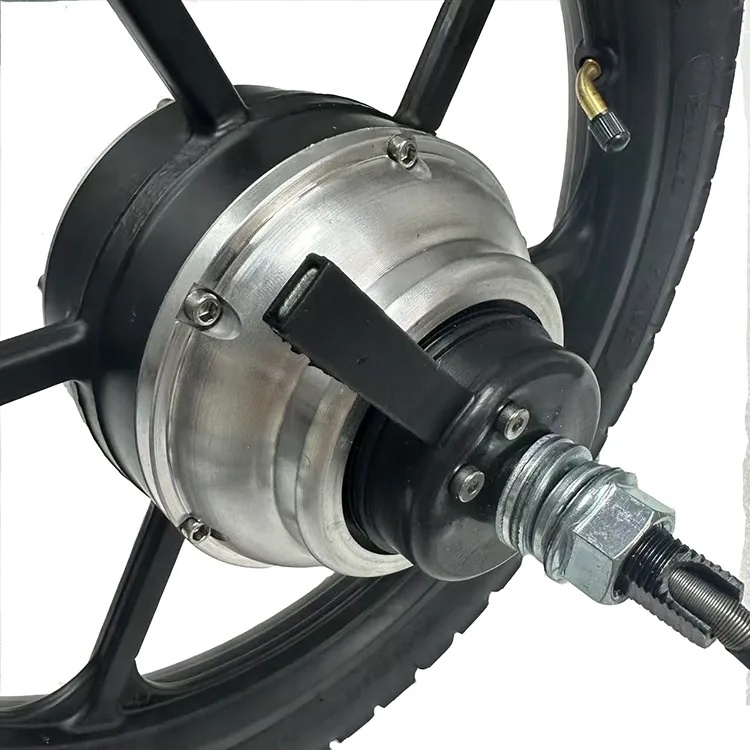

16 inch single shaft geared hub motor, with built-brake, which is good for electric wheelchair, AGV, robot and so on. It is ok to install with air tube tire or solid rubber tire. Usually, we sell this motor with tire.
It is ok to customize the speed and also the voltage. Any way, the most common motor data we produce is as follows:
Rated Voltage(V): 24V
Rated power(W): 250W
Wheel Size : 16″ with tire
Rated Speed(km/h): 8km/h
Rated Efficiency(%): ≧84
Reduction Ratio : 1:4.4
Weight(Kg)： 4.3kg without tire
Hall Sensor
Noise(db)： <55db
Waterproof Grade： IP54
We does only have this 16 inch motor, in fact, we have a series of this new design. We have 8 inch, 10 inch and 16 inch of this built-in brake motor. Here is there drawing
What is the delivery time?
Is there a 3D file you can provide us?
Hello, Can I get this Mecanum wheel and motor with a slower speed. 10 – 60 RPM (Walking Speed). Regards Peter Blake / 3D industrial design.
Yes, it is ok. But it needs your controller to support such function.
I am interested in the wheels. |
Please send me an offer for four wheels
Very interested in this product for autonomous robot prototype I am making. Please let me know when it will be available, and what control options you provide.
the motor is available now but we do not have controllers for them.
We will bay this!
Hello,
This is fantastic news!! I have been hoping something like this this would be developed soon and it has!! I am in need of a quantity of 4 – 8 inch OMNI wheels with a single 20 mm stub axle, or if that’s not available, with dual axles to fit into a fork. I am looking forward to doing business with you soon. Thank-you.
Tell me, when can I order an omni (meganum) motor-wheel?
In my company it is necessary for serial production.
info@nvt.com.mt
Oleg
Interested for an R2D2 build, please let us know when and how much!! EXCITING
currently, the motor is not bulk produced yet.
please infom about relation, material and kind of the gear.
what is the aproximate weigth?
I would like to see specs and pricing when it is available.
Thank you!
What diameter will these wheels be offered in? Will you have a 5″ version?
I would like to see specs and pricing when it is available.
Thank you!
still not ok to sell currently
Can I get the omni wheels with single shaft?
sorry, currently, they are still under testing.
What size and thread are the spindles?
How much per unit? Omni and mec.?
they are not ready to sell yet.
I am needing this for a project. look forward to pricing.
Can you please provide technical specs and pricing on the Robot Platform Mecanum wheel motor Omniwheel wheel motor
we will soon bulk production this motor and will post on the price soon. Thanks.
