80nm 16 inch low speed geared wheelbarrow motor

Home » hub motor » wheelbarrow motor » 80nm 16 inch low speed geared wheelbarrow motor
  • Model: KK16
  • Price: USD165

Max Torque: 30-60 N.M(max 80N.m tested under 48v 30A controller)
Rated power : 500w (peak 800W)
Rated voltage :48V
Max current:30A
Gear ration:5:1
no load Speed: 220RPM
Pole pairs:10
​Load Weight:150kg-250kg
Tire Diameter:400 mm


Low speed 7.5km/h 16 inch tractor tire geared hub motor, it is good for garden electric wheelbarrow or electric agricultural cart. It can use 3.0-8,3.5-8. 4.0-8, or 4.8-8 air tube and tires. We have dual shaft and single shaft version of this 16 inch tractor tire geared wheelbarrow motor.

Standard version:
Motor Wheel: 16 inch Agricultural Tractor Tire 4.0-8
Hallsensor: YES (5 hall sensor wires)
Brake type: disc braking.
Motor wheel size( rim): 8 inch
Max Torque: 30-60 N.M(max 80N.m tested under 48v 30A controller)
Rated power : 500w (peak 800W)
Rated voltage :48V
Max current:30A
Gear ration:5:1
no load Speed: 220RPM
Pole pairs:10
​Load Weight:150kg-250kg
Tire Diameter:400 mm

Online buying link https://retail.uumotor.com/product/tractor-tire-singe-shaft-16-inch-geared-hub-motor/

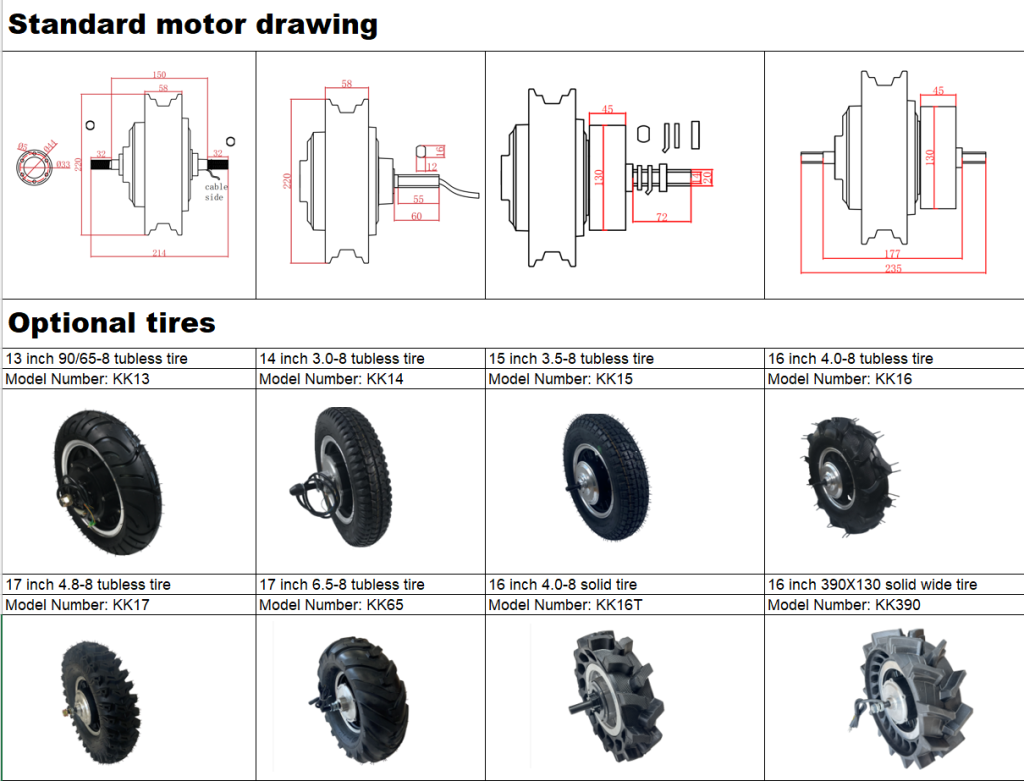

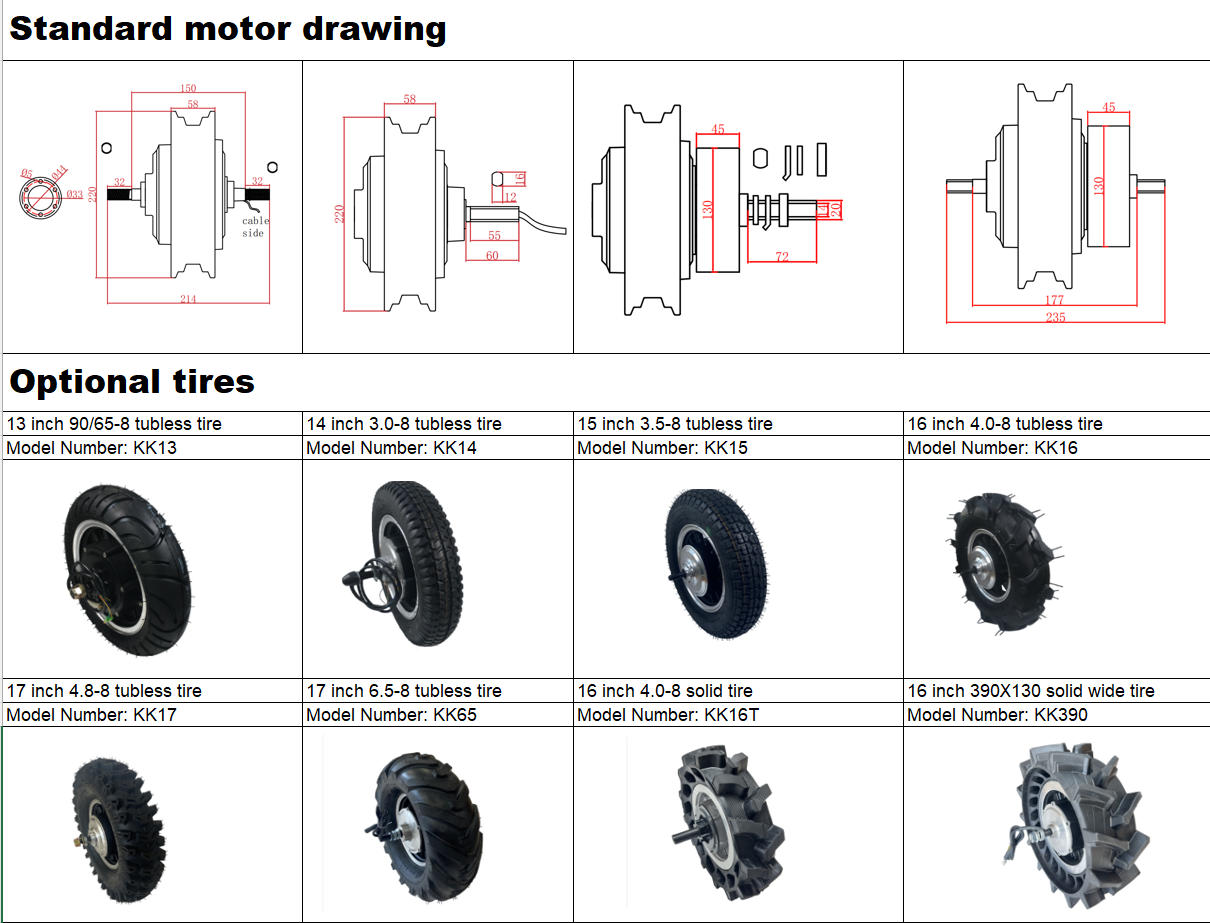

The motor can be also with 13 inch tire and 14 inch tire. Here is the testing data with 48v 30A controller. Download the 48v 500w testing data list.
