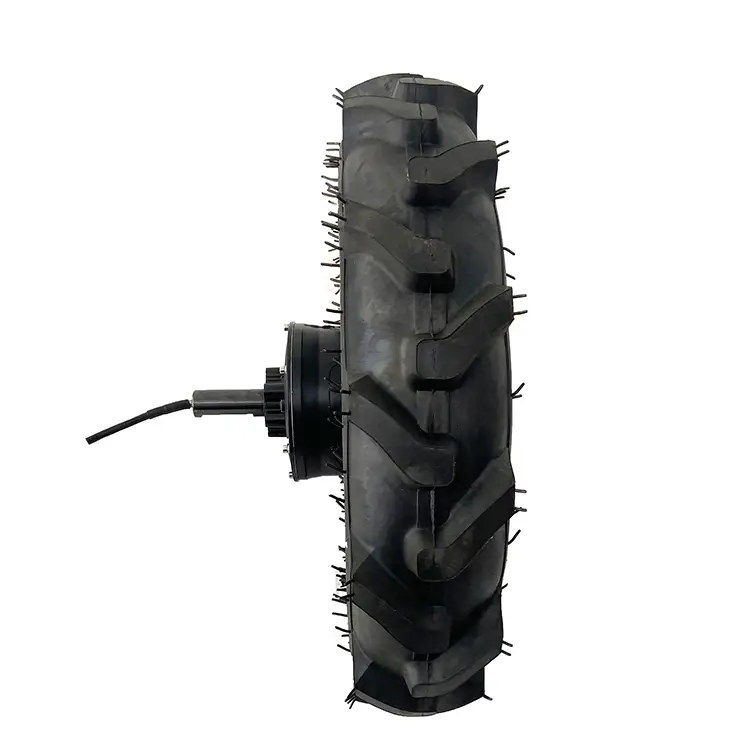

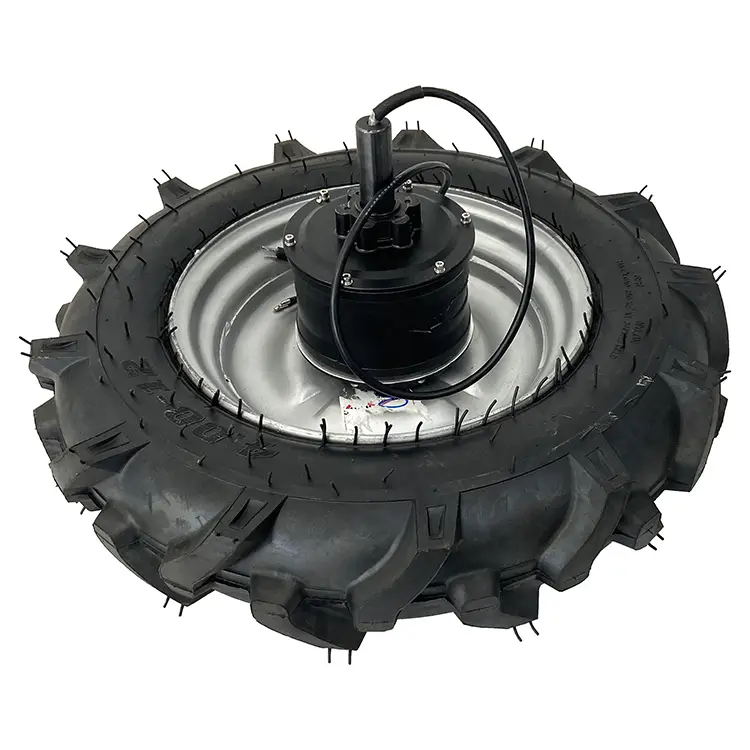

20 inch tractor tire high torque robot hub motor

Home » hub motor » Servo motor » 20 inch tractor tire high torque robot hub motor
  • Model: SV8H20
  • Price: USD390

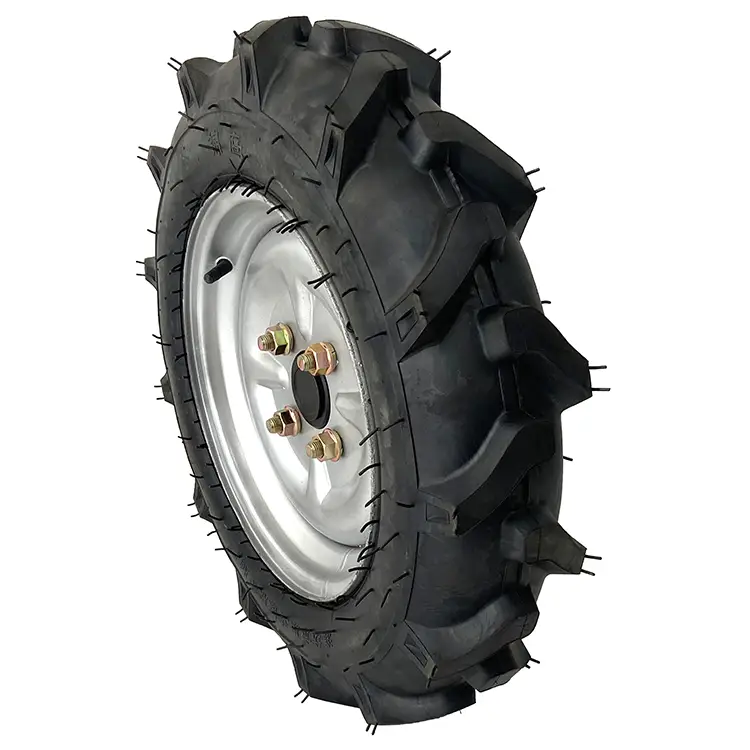

high torque 20 inch 1000w tube tractor tire robot hub motor with encoder, the rated torque 70 Nm, max torque 120N.m. It is a single shaft gearless, brushless dc servo hub motor with Magnetoelectric encoder. The rim is removable and 6.5 inch rim, it can be used for different tires and easy to replace the tires. It is good for argriculture robot, tractor and so on.

Voltage48VMotor weight20KG
Power1000 WattEfficiency>83%
Speed150-250RPMPole pairs20
Current5-18A(peak 35A)load<300KG
Torque70N.m(max 120N.M)TireHollow rubber tire
Diameter530MM(20 inch)WaterproofIP65
Encoder1024 line Magnetoelectric encodersensorhall sensors
