The HB5GS mono hub motor only 5 inch with tyre. The standard version of this motor is 36V 250W, rated speed 22km/h,24v 250w, 17km/h. We can also make it in 24V/36Vversion. It is a gearless motor and high speed

HB5GL-curving HB5GL-data  You could buy it here http://www.uumotor.com/store/141-5-inch-gearless-hub-motor-250w.html

Details:
This is a gearlesss brushless dc hub motor
Rated Voltage: DC 24V, 36V customizable
Rated Power: 150W-250W customizable
Speed: 500RPM-1800RPM customizable
tyre: solid tyre size 130mm
Motor weight: 1.9KG.
 mono shaft version.

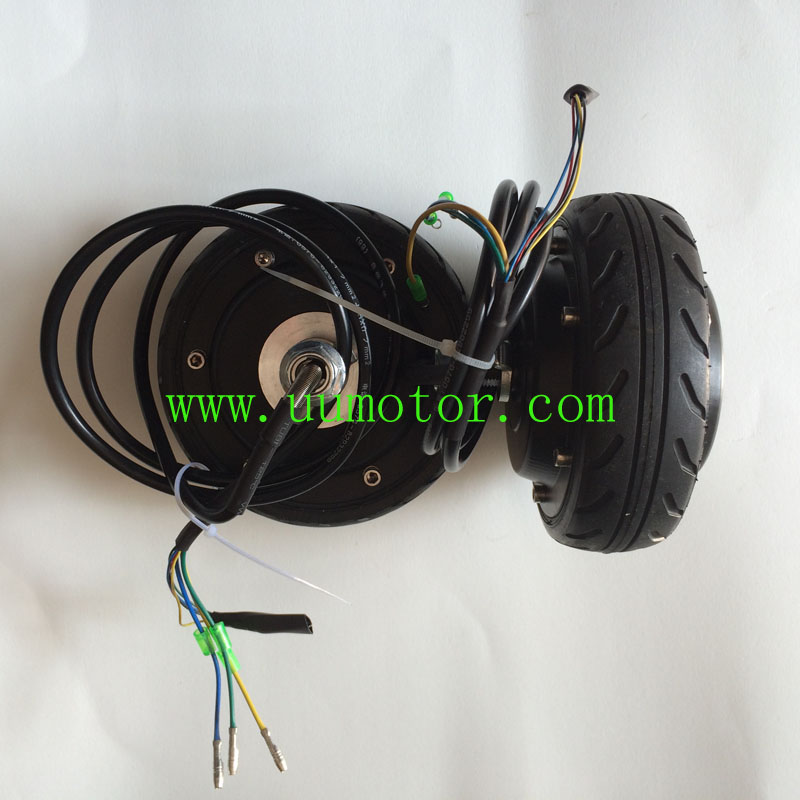

HB5GS_2 HB5GS_1 HB5GS HB5GS_3

This 5 inch hub motor Mono shaft version drawing: long shaft and short shaft version.

HB5GL_mono_shaft_drawing HB5GL_mono_shaft_drawing_2



Share

2 thoughts on “250w 25km/h 5 inch mono shaft hub motor

  1. Hello,
    I would like to ask will the 500RPM version (low speed) , 24V, 250w have more torque?
    What is the maximum torque I can get for this 5″ motor?
    Thank you
