- Model: KH8S16200
- Price: USD418

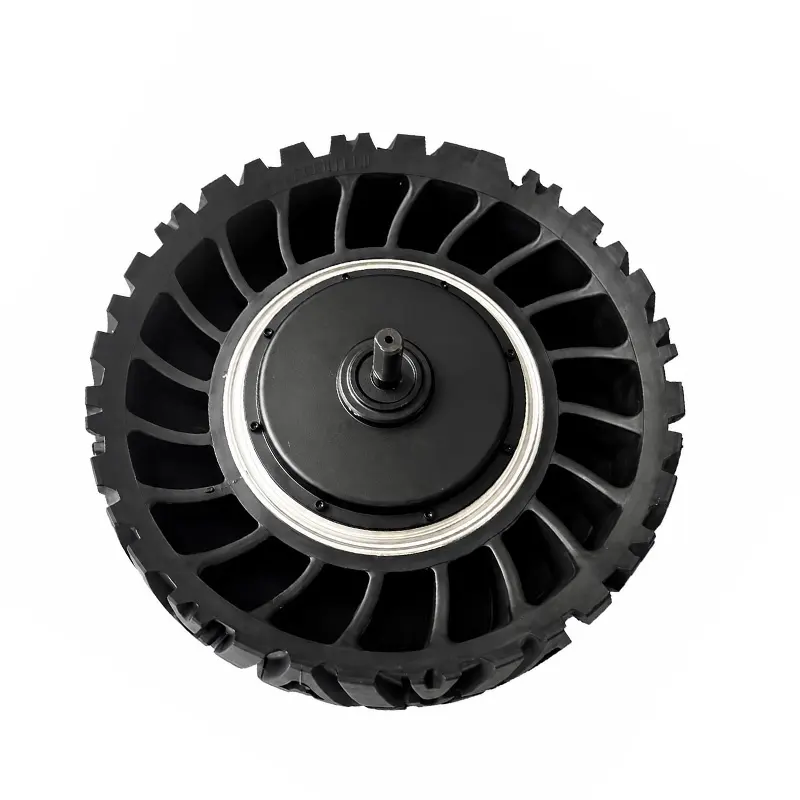

48V 2000W (peak 3000w) brushless dc geared hub motor for UGV, rated speed 150RPM, max torque 400N.m. High torque, low speed, steel gears, more strong, and more durable.
Motor weight 20kg,packign weigh 19kg.
16 inch solid tyre, Max load 800kg.
It is ok to run at 72V to get more power and torque, speed will increased to 270RM.
Buyer Quick Summary: This 16-inch 48V 2000W brushless geared hub motor is engineered for high-load, low-speed industrial applications. Featuring an impressive 400N.m maximum output torque, a 5:1 planetary reduction gear ratio, and a max speed of 150 RPM, it provides immense pushing power. Built with a puncture-proof solid rubber tire, Hall sensors, and optional encoder integration, it is the perfect drive solution for industrial AGVs, autonomous mobile robots (AMR), electric mini dumpers, and heavy utility vehicles.
16 Inch 48V 2000W High-Torque (400N.m) Geared Hub Motor with Solid Tire
Designed specifically for heavy-duty industrial automation and rough-terrain utility vehicles, this 16-inch 48V 2000W geared hub motor delivers up to 400N.m of torque. Integrated with a precise 5:1 gear reduction ratio and rated at 150 RPM, this motor combines low-speed stability with massive hauling capability.
The puncture-proof solid rubber tire eliminates flats, maintenance, and vehicle downtime in harsh operating environments like factories, construction sites, and agricultural fields. Equipped standard with Hall sensors, it can also be configured with an optional optical/magnetic encoder for precise closed-loop position and speed control in autonomous robotic systems.
Key Features & Technical Highlights
- Massive 400N.m Torque Output: High-density planetary gearbox setup allows the motor to pull and push heavy loads up to 1.5–2 tons effortlessly.
- 5:1 Reduction Gear Ratio: Optimized reduction ratio balances high motor efficiency with strong low-end torque for steep ramp climbing.

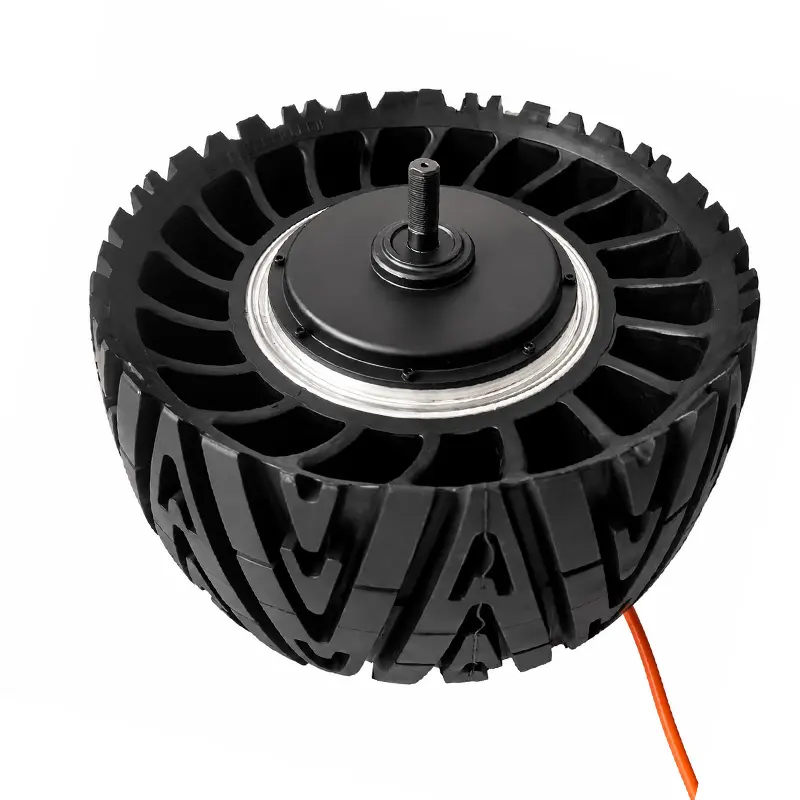

- Puncture-Proof 16-Inch Solid Tire: Heavy-duty solid rubber construction guarantees zero flat tires, superior wear resistance, and 24/7 industrial uptime.
- Precision Closed-Loop Control (Optional Encoder): Supports optical or magnetic encoder upgrades alongside standard Hall sensors for high-precision AGV/AMR trajectory tracking.
- Low Speed & High Safety (150 RPM): Maximum speed of ~11.5 km/h ensures safe, controlled operation in crowded factory floors and public spaces.
- IP65 Waterproof & Dustproof Design: Sealed hub housing protects internal gearings and windings against water splashes, dust, and harsh weather conditions.
Technical Specifications
| Parameter | Specification Value |
|---|---|
| Motor Type | Brushless Geared Hub Motor (BLDC) |
| Rated Power / Voltage | 48V DC / 2000W |
| Peak Output Torque | 400 N.m |
| Gear Reduction Ratio | 5:1 (Planetary Gear Set) |
| Rated Speed | 150 RPM (~11.5 km/h max speed) |
| Wheel & Tyre Size | 16 Inch (Solid Rubber Tyre) |
| Position Feedback | Built-in Hall Sensors (Optional Encoder Compatible) |
| Brake & Direction | Reversible / Supports Regenerative & Disc Braking |
Primary Application Scenarios
1. Heavy-Duty AGVs & Autonomous Mobile Robots (AMR)
Ideal as a primary drive wheel for heavy factory material handlers, pallet transport robots, and logistics platforms requiring 400Nm torque and millimeter-level encoder precision.
2. Construction & Electric Mini Dumpers
Powers heavy electric site dumper trucks, motorized wheelbarrows, and concrete carts across gravel, mud, and steep slopes without puncture risks.
3. Agricultural & Orchard Utility Platforms
Provides stable, low-RPM high-torque drive for automated fruit harvesting carts, greenhouse equipment carriers, and agricultural towing machinery.
4. Airport, Seaport & Trailer Movers
Drives motorized trailer movers, boat positioning dollies, airport baggage carts, and heavy municipal sanitation sweepers.
OEM/ODM Customization Services
We offer comprehensive custom manufacturing for industrial clients. Options include customized axle lengths, shaft splines, custom gear ratios (3:1 to 10:1), alternative voltages (24V/36V/72V), matched BLDC motor controllers, and pre-installed high-resolution encoders. Contact our engineering team for CAD drawings and sample testing.
