6km/h off road 8 inch geared hub motor

Home » hub motor » 6km/h off road 8 inch geared hub motor
8 inch off road geared motor
  • Price: USD145
  • Model: KK8F

8 inch max torque 50N.m

Low speed high torque

geared brushless


low speed high torque 8 inch geared hub motor. It is with off road tire for electric wheelbarrow. The max torque 35N.m. 24V 250W, 6km/h(150RPM), gear ratio 1:5, max current 20A, max load 200kg on flat road. 48v 350W version max 50N.M.

rated power180W~500W
speed6~20KM/H
rpm150~500RPM
diameter202mm
dropout size105mm
net weight4.6KG
max load80~300KG

The motor outputs max 56N.m torque under 48v voltage, there is the 48v 350w testing data list.

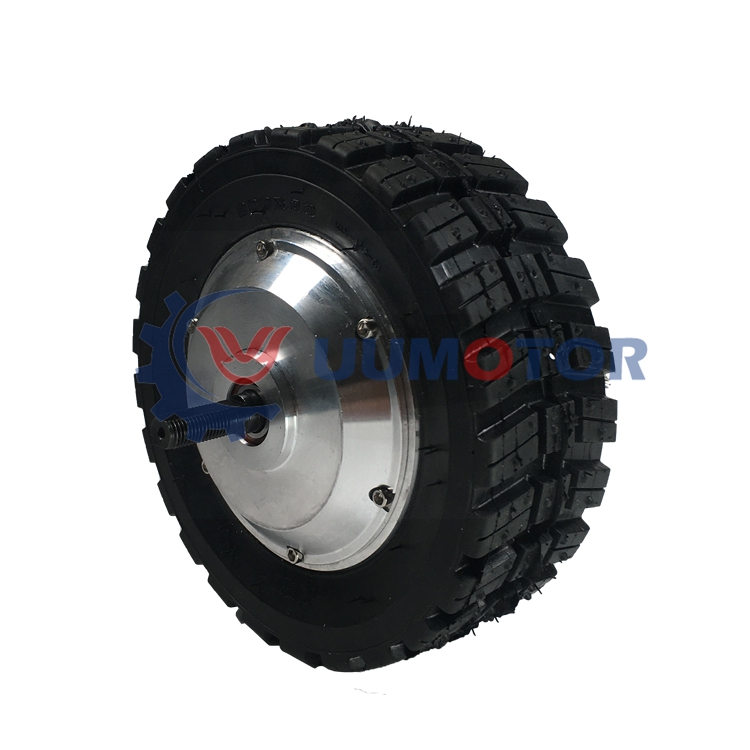

8 inch off road fat tire motor
8 inch off road geared motor
fat tire 8 inch hub motor drawing
