8 inch geared hub motor disc braking 500w

Home » hub motor » 8 inch geared hub motor disc braking 500w

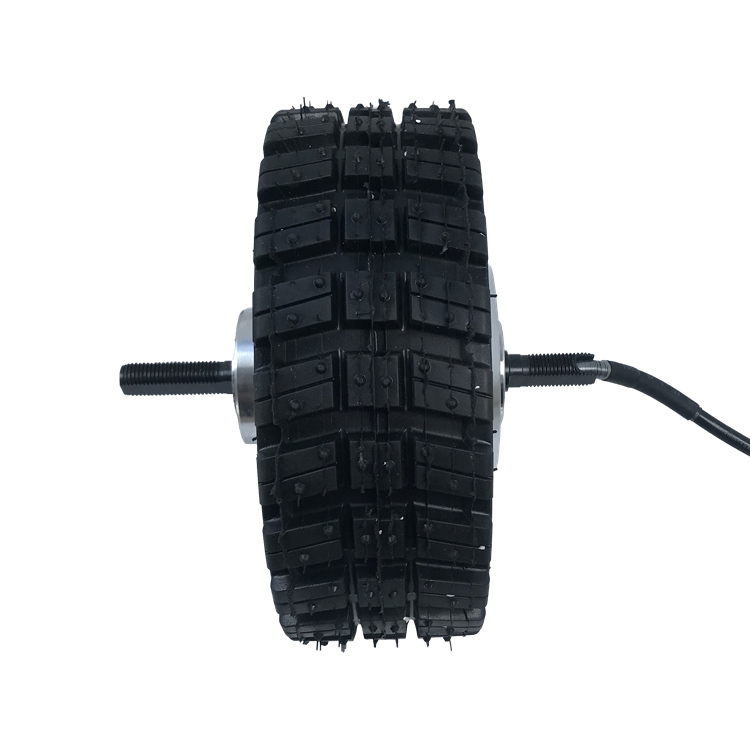

8 inch geared disc brake motor
  • Model: YQ-8-D
  • Price: USD145

8 inch geared hub motor, disc braking,reversiable, 5km-25km/h,max load 150kg. We can also make other speed and voltage version as per your request.

8 inch motor drawing

Voltage:12V 24V 36V 48VElectric motors:Brushless dc motor
Tire type:Solid RubberColour:Silver
Structure:Permanent MagnetTorque:10~35Nm
Rated voltage:12/24/36/48VRated Power (Watts):65-180/180-250/250-350/250-500
Speed:5-25km/hSpeed (RPM):100-600rpm
Wheel type:Aluminium materialScope of application:Wheelchair,robot,Electric bicycle
Length:203mmNet Weight (Kg):3.48
Gross Weight (kg):3.5Effectiveness:75-86%
Production:Jiangsu ChinaRim size: 8 inch
Product Features:Waterproof,Totally Enclosed Small volume, light weight, large torque, high efficiency, stable performance, cost-effective superior
8 inch geared hub motor application

example of our 8 inch geared disc braking hub motor, the mobility scooter Smartscoot .
