- Model: YQ-8
- Price: USD145
common stock motor is 24v 180w geared 8 inch hub motor, 6km/h,8 inch dropout size 100mm-120mm, e braking,reversiable, max load 150kg. We can also make other speed and voltage version as per your request. We also have this 8 inch motor with non marking gray tire, and also a disc brake motor.
| Item: | YQ-8 | Design: | Brushless |
| Voltage: | 12V 24V 36V 48V | Electric motors: | Brushless dc motor |
| Tire type: | Solid Rubber | Colour: | Silver |
| Structure: | Permanent Magnet | Torque: | 10~35Nm |
| Rated voltage: | 12/24/36/48V | Rated Power (Watts): | 65-180/180-250/250-350/250-500 |
| Speed: | 5-25km/h | Speed (RPM): | 100-600rpm |
| Wheel type: | Aluminium material | Scope of application: | Wheelchair,robot,Electric bicycle |
| Length: | 203mm | Net Weight (Kg): | 3.48 |
| Gross Weight (kg): | 3.5 | Effectiveness: | 75-86% |
| Production: | Jiangsu China | Rim size: | 8 inch |
| Product Features: | Waterproof,Totally Enclosed Small volume, light weight, large torque, high efficiency, stable performance, cost-effective superior | ||
You can buy this high torque gear motor here https://www.uumotor.com/ws/p/6km-h-8-inch-brushless-geared-hub-motor/
Find the recomended multi function sine wave controler
Is this a Geared hub motors that uses an internal planetary gear system to reduce the motor’s high speed for increased torque and better hill-climbing
Yes, you are correct.
I need this with single shaft…is that possible?
It has got single shaft…
We can customize it to single shaft version.
Hi Tony,
I need to know the diameter of the motor (without the tire) of your model YQ8.
Hi, Regrading my previous post, This is about your YQ8 model
Hi Tony,

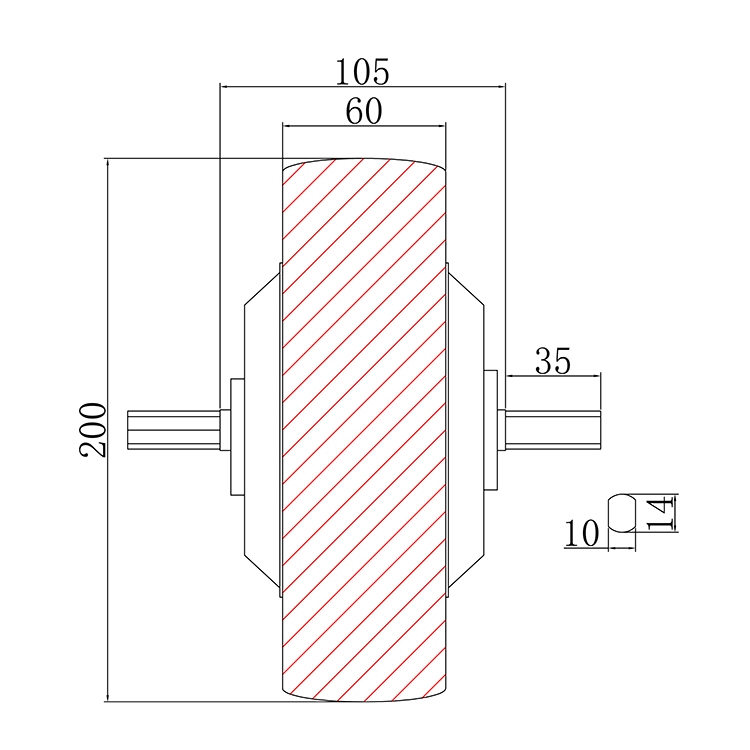

I need the real dimensions of the motor (without the rubber wheel). Can you send me a drawing?
Thanks in advance
Hi Tony the yq8 hub motor does it come with a disc rotor, and a solid tyre ?
We have disc brake version, but speed is higher. It is solid tire.
HI Tony I will be in Shanghai from the 8/11/19 -16/11/19 is it possible to visit your factory and meet with you to discuss some motor issues I have with you , please let me know ASAP as I am planning my trip for only five business days regards Allan
Hello!
I am looking for a complete kit for my mobility scooter project. I need an 8-inch 24V 200W hub motor. I want a maximum speed of 6 kph with thumb throttle and regenerative braking. I also need a controller that is compatible with the hub motor and a 24V 10AH Lithium Silver Fish Battery Pack. Please send me a quotation. Products will be shipped to the Philippines. Thank you.
you can buy this kit https://www.uumotor.com/8-inch-slow-speed-6kmh-25kmh-electric-scooter-kit.html
Hi,
I’m looking for a 8” hub motor ideally between 100-150w. I don’t need to go faster than 6-8kph. The thumb throttle with regen braking. To ship to New York, USA. Can you suggest options and provide a quote please?
Thanks,
Tom
Hi Tom,
Yes, we can make such a kit for you , please refer to this link https://www.uumotor.com/webstore/electric-scooter-kit/8-inch-electric-scooter-geared-motor-kit
There is no description of wiring for the three wires coming out of the electric whell “ND 24V 180W 2015.
Please describe the wiring directly to the battery.
it needs a controller to connect to the motor. It is not ok just to connect the battery to the motor.
I would like to know if it is possible to order a single HL8G 8 inch wheel with tyre disc braking and one controller and the total price (shipment included).
Thank you in advance.
Best regards.
Hello Gergio,
We can offer you the one controlle with two controller, but the single shaft will cannot use disc braking, the braking will be made by controller.
