300A dual drive RS485 CAN encoder brushless controller

• Model: MX-D-ES60300(MX-ES-2000W)
• Price: USD395 USD295–USD395

Important noted, we have upgrade the controller to new function and the new version needs the new programming software here. The label with V4.01 should use our new software here https://drive.google.com/file/d/1EUgoc0w1slfRqcTrytdPpbJYe3_fuJDz/view?usp=sharing.

Programmable Dual driver brushless controller, max BUS current 150A, max phase current 150A for each motor. Support throttle,joystick, RS485, UART and CAN. Speed-loop control, torque-loop control. Net weight 3kg. Support bldc motor with hall sensros, increment encoders, or no hall sensors. Working voltage 20V-60V. Default support RS485, CAN, throttle driving, and PC programing software can auto detect motor data, this help it can work with more motors.

Online buying link https://retail.uumotor.com/product/360a-multi-functional-dual-drive-controller-for-brushlsss-dc-motor/

Added new functions, motor calibration, hall sensors calibration. Default Anolog, RS485, CAN are available. The remote control and Joystick (rocker), function needs special made.

For this type of dual drive controller, we have 2000w version, 1000w version, and 500w version.

1. download the gneral maual from google docs, New 4.01 manual guide in Chinese

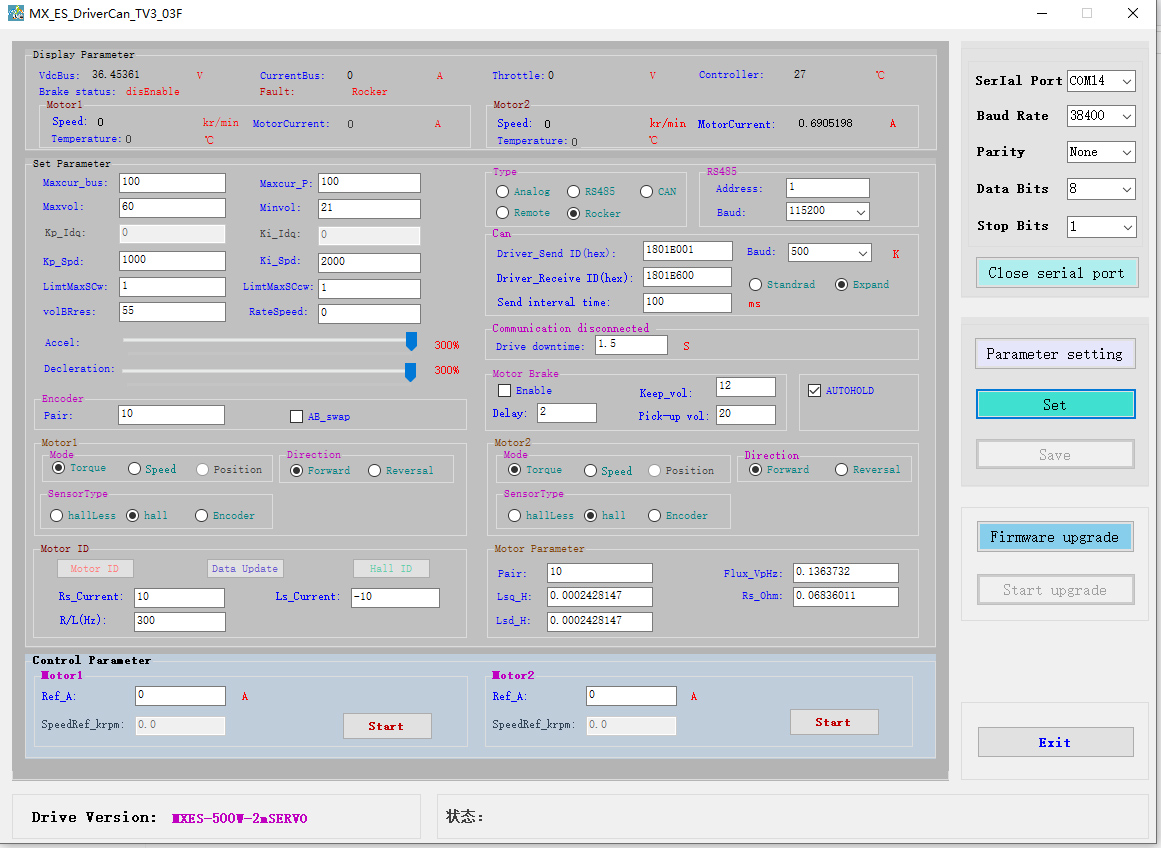

2. Download 2025.01.15 new updated controller PC programming softwawer
3. Download the USB driver if needed
4. Download CAN protocol in google translation file,Original Chinese File.
5. Download RS485 Protocal in google translation file, original Chinese File.
