e braking 40A dual drive bldc motor controller

Home » Motor Controller » e braking 40A dual drive bldc motor controller

Category:

Tags:

  • Model: MXES-DT24
  • Price: USD165

24v,36V, and 48V universal sine wave(foc) dual drive motor controller, a new tidy compact powerful brushless motor controller which can control two motors. It works for dual brushless hub motors, e braking or EMB braking. Now we have upgraded the controller can auto read motors data by PC programming software to let motors easy to work with our controller. The speed adjust will be by throttle(0-5V) like you to drive an electric bicycle.

If you cannot find the right connectors to march our controller motor cables, you could cut off the cable connector and find the motor cables as this: thick yellow, blue, green cables are motor phase cable; thin red,black,yellow,blue,green are hall sensors cable; thin gray and white are emb braking cable.

The controller max current is 40A, that is max 20A each motor, and also max 40A phase current for each motor. It is good for electric wheelbarrow, small dual power scooters.

We will updated how to set the programming software and how to use a new motor to our dual drive controller. If you buy motors from us, we will pre-set the data to let it work with our motors.

There are two drive modes. 1. Speedmode(mode swith on): motor will always output high torque, the throttle is only adjust speed. And in this mode, the motors will be auto baked when there is no throttle single input. 2. Torque mode(mode switch off): this will like to drive a common electric bike, the throttle is adjust torque output.

When power on the controller, the controller will detect whether the mode switch is on or off to decide which mode it will control. The mode switch does not work during controller powered on, unless you re-start the controler power switch or battery switch.

Power SwitchBlue:B+; Purple:power lock
ThrottleRed: +5V; Brown: speed signal; Black:GND
Brake switchGray: braking signal; Black: GND
Reverse switchYellow: reverse signal; Black:GND
Mode switchOrange: mode signal; Black: GND
WIRES EXPLANATION

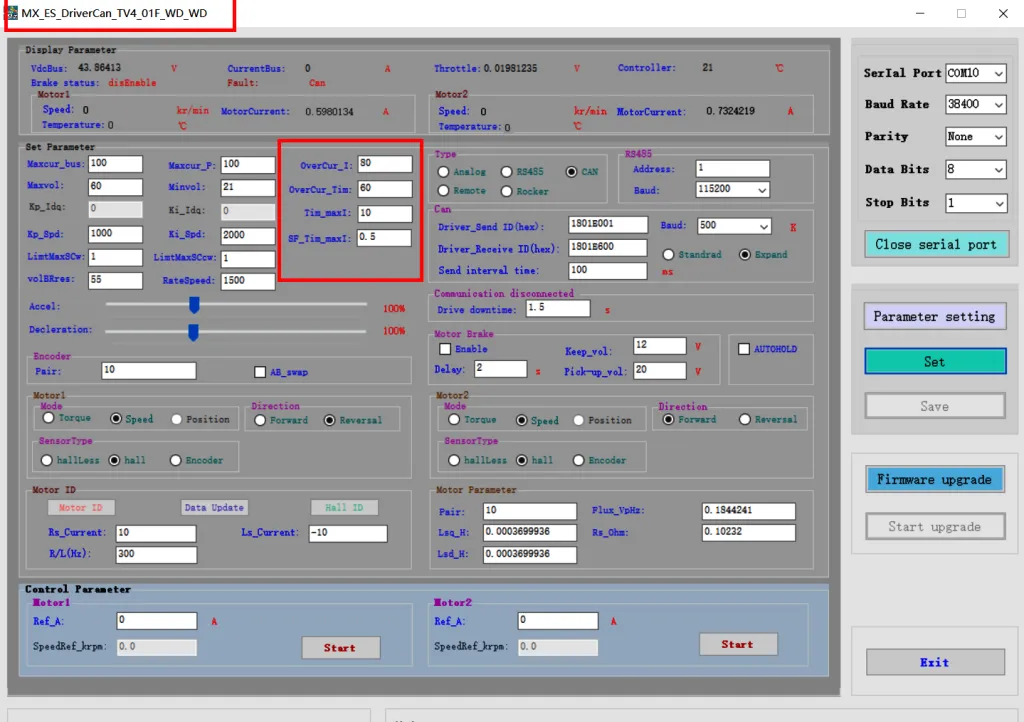

the following two videos are two seperated videos shows motors and software interface.

12 responses to “e braking 40A dual drive bldc motor controller”

  1. Tony I would need a full description. ie, with or without e- braking, 36 spoked wheel, 20in x1.95 tyre size .
    Thank you Malcolm Jacks.
