- Model: KX12
- Price: USD255
- MAX SPEED 48V 120RPM
- GEAR RATIO: 1:10
- MAX Torque: 200N.m
- Goss weight: 12kg
12 inch hub motor with solid tire, 1:10 high gear ratio setting, reversible, max speed can be 75RPM, 120RPM, 150RPM, max torque can be upated to 300N.M version

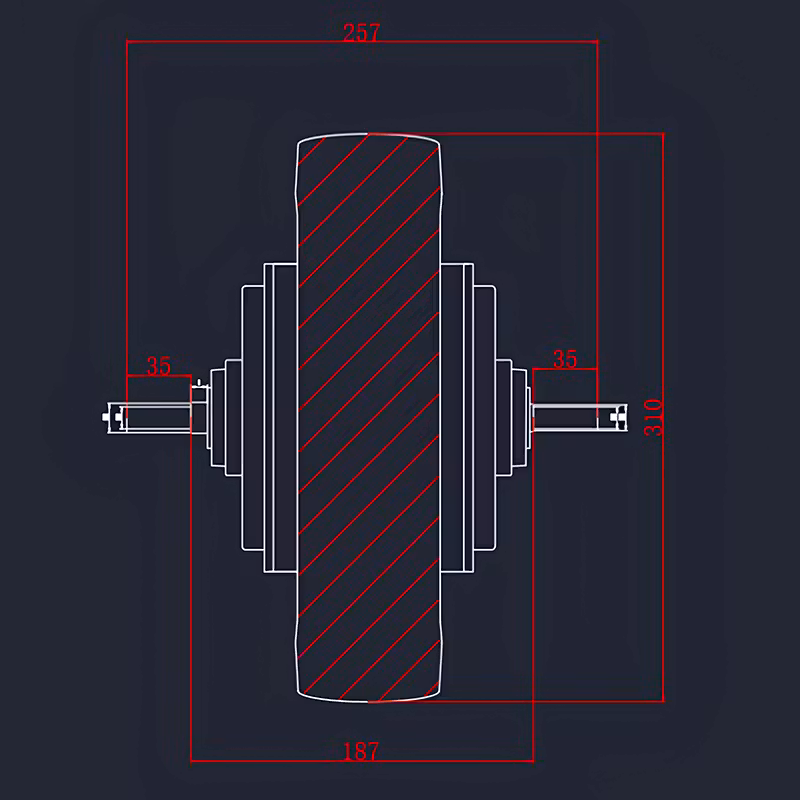

It is also ok to make this 12 inch solid tire hub motor to be single shaft version, the shaft size is customizable. Here is the example of the single shaft version images.
Applications Across Multiple Industries
This 12 inch high-torque, low-speed solid tire hub motor is engineered for demanding environments and can be widely deployed across the following sectors:
A. Industrial & Logistics
- Heavy-Duty AGV/AMR Systems
Designed for automated material handling platforms in factories, capable of transporting heavy pallets (hundreds of kilograms) with stable and precise movement. - Electric Tow Tractors
Ideal for use in airports, ports, and warehouses to pull long trains of baggage carts or cargo trolleys with high traction efficiency.
B. Construction & Agriculture
- Electric Power Barrows (Site Dumpers)
Suitable for transporting concrete, bricks, sand, and gravel on construction sites. The 1:10 gear reduction ensures excellent climbing performance under full load conditions. - Smart Agricultural Robots
Applicable to autonomous harvesting machines, field spraying robots, and transport vehicles. Solid tires provide superior adaptability to muddy and uneven farmland terrains.
C. Service & Medical
- Heavy Medical Equipment Mobility Systems
Used as an auxiliary drive for electric hospital beds, mobile X-ray units, and ICU transfer equipment, significantly reducing manual handling effort for medical staff. - Large-Scale Service Robots
Suitable for commercial cleaning robots in shopping malls or parking facilities, as well as heavy-duty parcel delivery robots requiring reliable torque output.
D. Special Environments & Entertainment
- Tunnel & Underground Inspection Vehicles
Enables stable, low-speed operation in dark, humid, and complex pipeline or tunnel environments for inspection and maintenance tasks. - Stage Automation Systems
Drives moving stage platforms, rotating sets, and heavy theatrical props in theaters and event venues, ensuring smooth and precise motion control.
