- Model: HT10
- Price: USD150
48V 350W, max 40RPM, max torque 200N.m, it is a hall sensors motor, reversible.
- Ultra-low speed
- High torque output
- High reduction ratio (planetary geared)
- Position feedback via Hall sensors (not servo precision)
- Suitable for heavy-duty, slow-moving vehicles

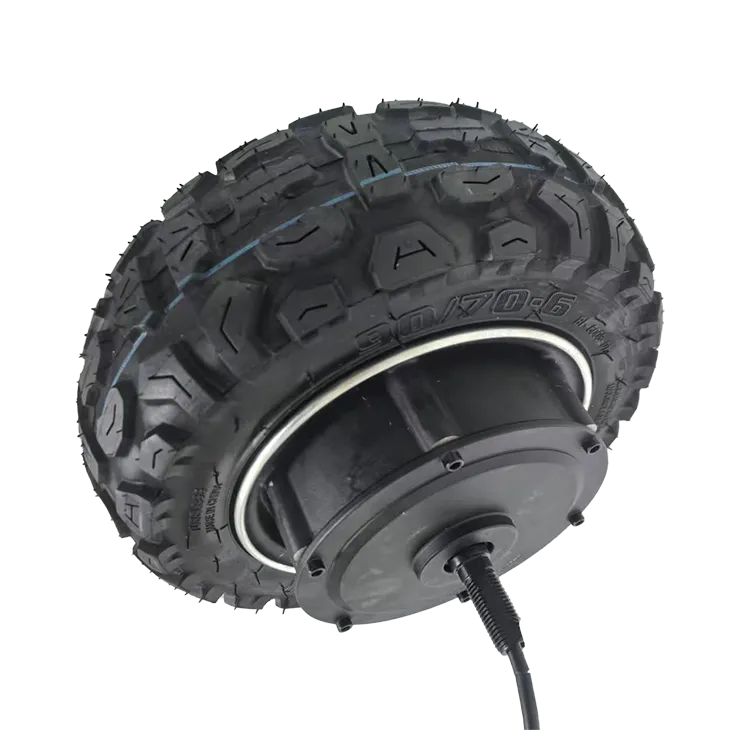

- 10 inch tubeless tire (90/70-6)
24-36V 250-350W, max load 500kg, it is ok to install 10-15 inch tubeless tire to it. Please noted that the tires are not ok to bear 500kg load.
Application Characteristics Summary
This motor is best suited for:
- Heavy-load, low-speed transportation
- Indoor industrial mobility
- Autonomous vehicle platforms
- High torque demand with limited top speed
Not suitable for:
- High-speed e-bikes
- Scooters requiring > 100 RPM wheel speed
- Precision servo positioning (no encoder)
🔹 Typical Applications
1. Electric Utility Carts
- Airport baggage carts
- Factory material transport vehicles
- Warehouse platform carts
- Campus service vehicles
Ideal for heavy load transportation at low speed with strong climbing ability.
2. AGV & AMR (Automated Guided Vehicles)
- Industrial AGV platforms
- Warehouse logistics robots
- Autonomous transport modules
The 200 Nm torque enables stable start under full load, suitable for indoor logistics systems.
3. Electric Wheelchairs & Mobility Platforms
- Heavy-duty mobility scooters
- Industrial wheelchair bases
- Special mobility carriers
Provides smooth low-speed control and high torque for ramp climbing.
4. Agricultural Electric Equipment
- Small electric tractors
- Orchard transport carts
- Greenhouse utility vehicles
High torque at low RPM makes it ideal for off-road and soft ground applications.
5. Electric Construction Equipment
- Mini electric dumpers
- Concrete transport carts
- Site material handling vehicles
Designed for short-distance heavy-load transport in construction environments.
6. Electric Trailers & Tow Systems
- Electric trailer movers
- Boat trailer transport systems
- Caravan positioning systems
200 Nm output torque allows precise slow-speed maneuvering.
7. Cleaning & Sanitation Vehicles
- Electric floor scrubbers
- Road sweeping machines
- Municipal sanitation carts
Low-speed torque ensures reliable performance under heavy resistance.
8. Robotic Drive Modules
- Mobile robot bases
- Inspection robots
- Military ground platforms
Suitable for high-torque modular drive units requiring compact integration.
