- Model: MX-ES-1000W
- Price: USD195–USD395
Support Hall sensors,encoder,RS485,CAN, RC, JoyStick, EM brake

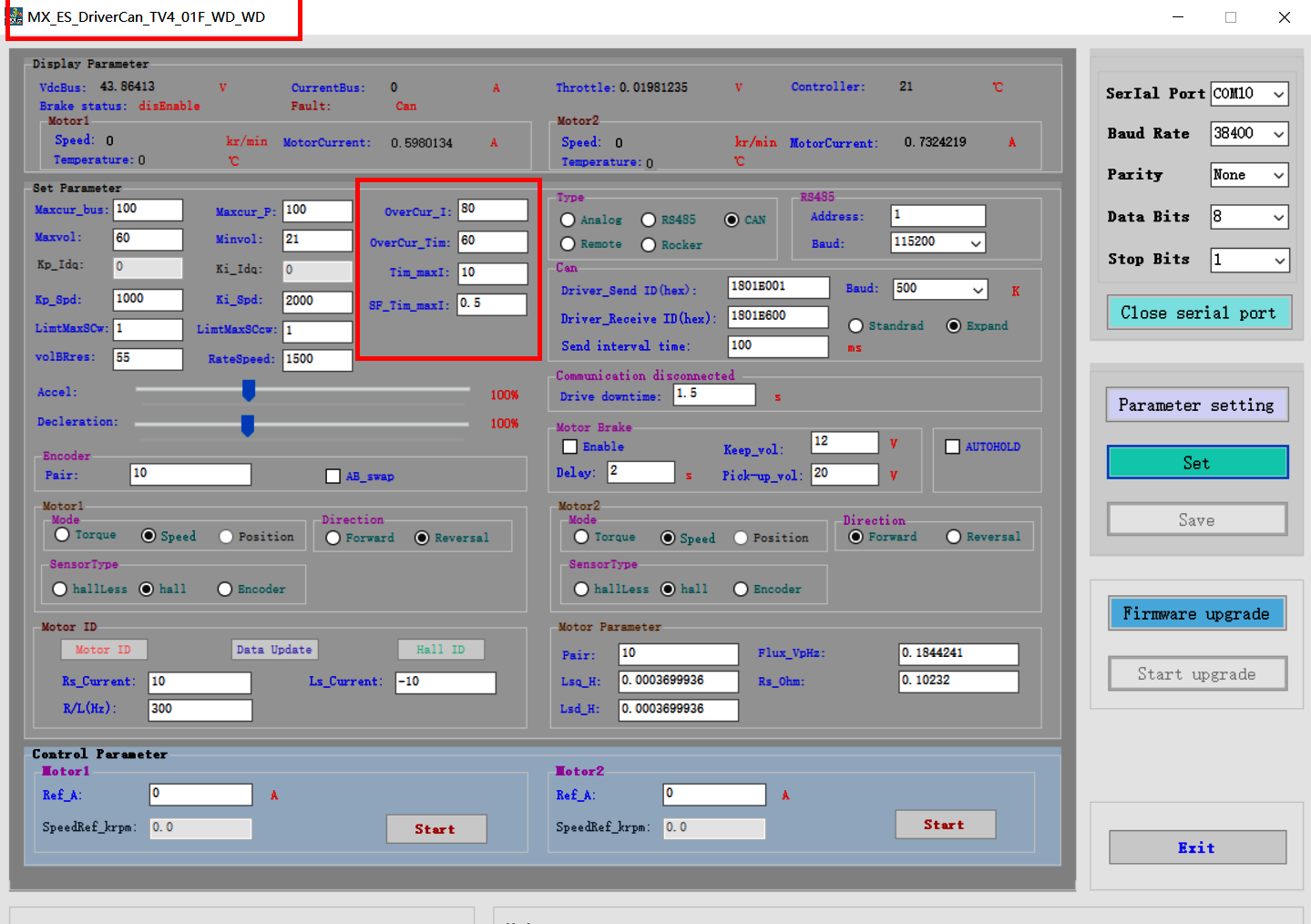

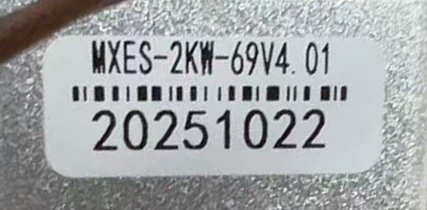

Important noted, we have upgrade the controller to new function and the new version needs the new programming software here. The label with V4.01 should use our new software here https://drive.google.com/file/d/1EUgoc0w1slfRqcTrytdPpbJYe3_fuJDz/view?usp=sharing.
Programmable Dual driver brushless controller, max BUS current 100A, max phase current 100A for each motor. Support throttle,joystick, RS485, UART and CAN. Speed-loop control, torque-loop control. Net weight 3kg. Support bldc motor with hall sensros, increment encoders, or no hall sensors. Working voltage 20V-60V.For higher voltage, it needs special customize. Default support RS485, CAN, throttle driving, and PC programing software can auto detect motor data, this help it can work with more motors.
We have this type of dual controller in 2000w, 1000w and 500w.
Could you email me the customization instruction? Because I’ve already have this one and need to use it with pwm input type
Hello Joe, the controller default does not support PWM input, you may need a converter, and if you are using ratio control, you can choose this controller https://www.uumotor.com/4-wheels-drive-multi-function-rc-joystick-160a-dual-drive-controller.html
hi, does it supports pwm input type?
it is special customzied, and YOU CAN also buy this one https://www.uumotor.com/4-wheels-drive-multi-function-rc-joystick-160a-dual-drive-controller.html
I have MX-ES-1000W controller version 3.03, where can I get configuration software for it?
please email us with the controller label. I will send you the correct software or firmware for updgrading.
Check this link https://drive.google.com/file/d/1NtYaOZPooTA1_8zTSguZ3uOYQ2Jo5fP7/view?usp=sharing
Hi
I am interested in a 1000W unit. Can we please discuss shipping?
Thanks
James
Can I controll each motor individually, so that they have different speeds, when I control it via RS485 or CAN and a RaspberryPi Pico?
Yes, you can.
