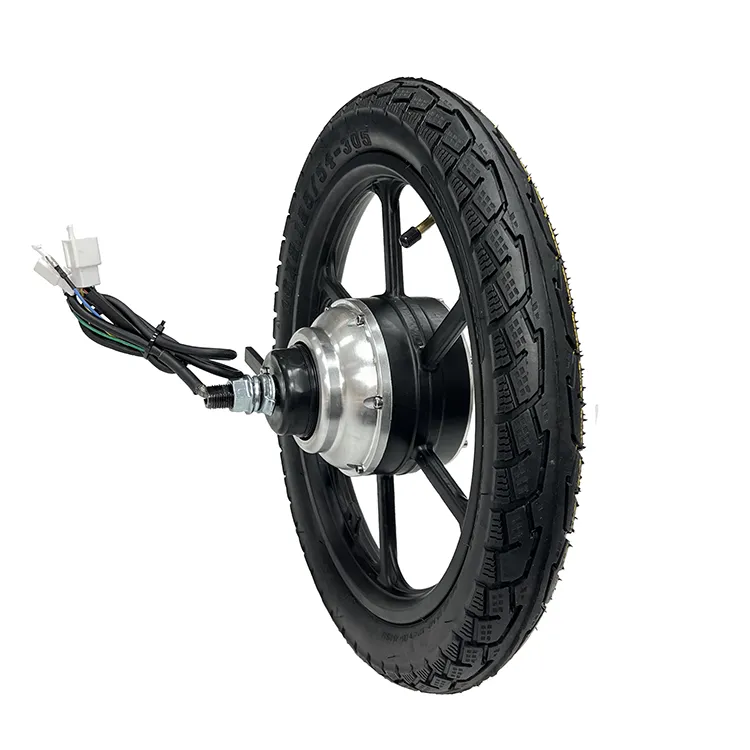

solid tire high torque low speed 16 inch hub motor

• Model: KK16T
• Price: USD165

Max Torque: 150N.m
Rated power : 1000W
Rated voltage ：48V
Max current: 50A
Gear ration:1:5
no load Speed: 220RPM
Pole pairs:10
​Load Weight:150kg-250kg
Tire Diameter:400 mm

It is a 16 inch hub motor for electric wheelbarrow with 4.00-8 high load solid tire. It is with 25mm thick single shaft, but it is also ok to customize the shaft to be threaded shaft type with different size. And it is also OK to make dual shaft version.

Optional: Encoder, temperature sensors, Eletromagnetic brake, drum brake, disc brake.

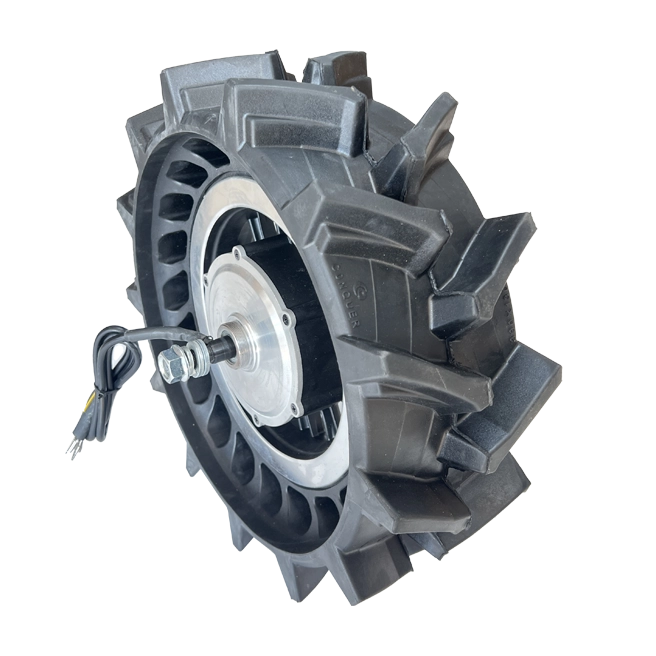

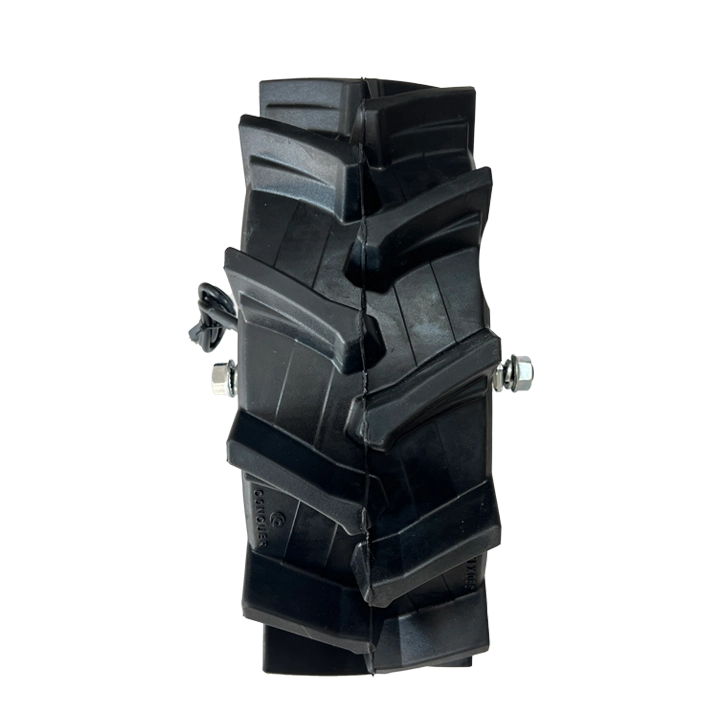

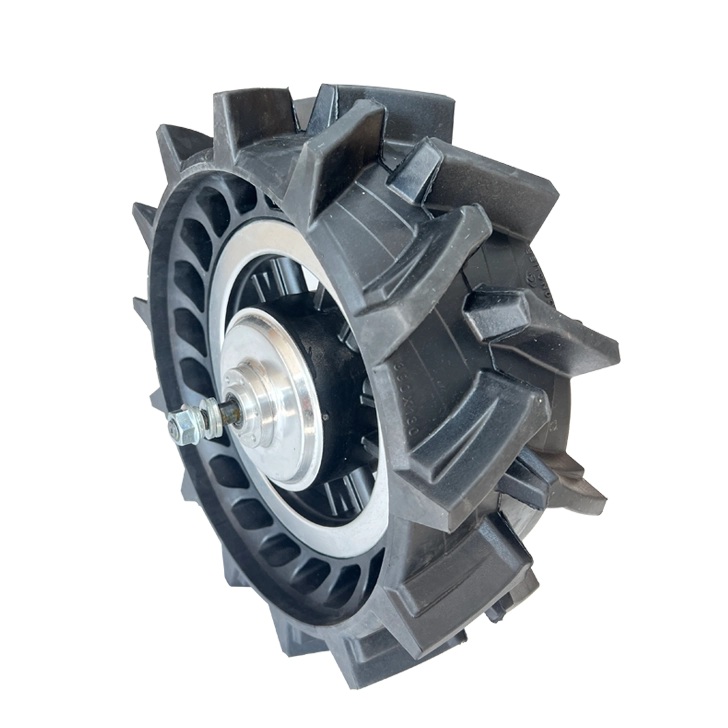

We also have another type solid fat Tyre version.

The motor standard is with hall sensors, it is ok to add temperature sensor and Incremental Magnetic Encoder. The gears can be upgrade to metal gears and the disc brake can be upgrade to be EMB. If you are looking for a hub motor with solid tire, this one may be your good choice.

For the motor braking, it can be disc braking, EM Braking and drum braking now. Here is some photo of the drum braking dual shafts version.
