- Model: UMB5K
- Price: USD360
This a powerful and high speed 5kw electric bike conversion kit. It is also suitable for electric motorcycle conversion, max speed 70-80km/h. motor dropout size is 150mm or 170mm.
The UMB5K includes:
1. spoked hub motor 5kw: 48v, 60v,72v,

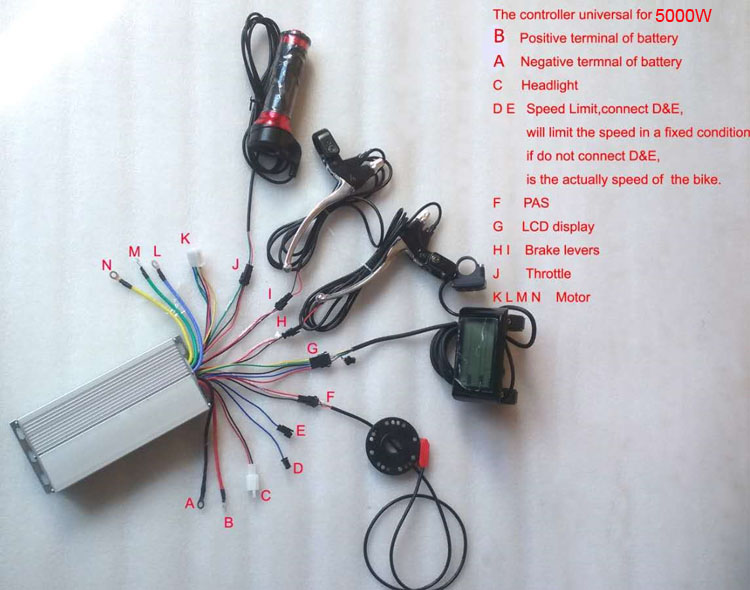

2. 5kw brushless motor controller ( suit for 48v, 60v,72v )
3. brake levers
4. throttle
5. two levers buttons for adjust speed
Optional: PAS USD15, LCD display USD30

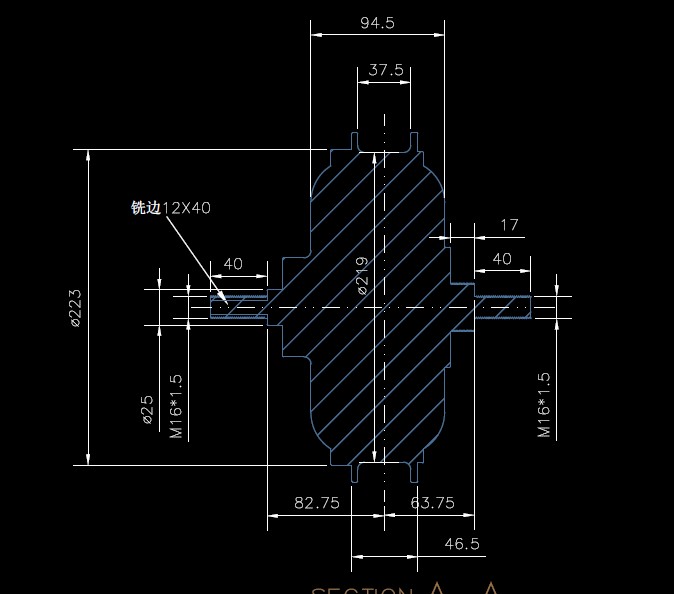

The motor dropout size is 150mm/170MM. The rim is 26×2.6 standard, and it is also ok to make you fat bike rim and tire 26×4.0.
For this UMB5K motor, a 5kw e bike hub motor, which max speed can reach 80km/h.
Is this 5Kw kit available for sale yet?
How to buy
Can these be configured for lower speed, more torque, for hauling loads? And can it run in reverse? Looking to build powered bike cart, that can double as hand cart for loads.
i need this motor
Hello,
I am looking for 19 inch, it is to replace a 150cc (rated approx 5kw). I am looking for 60km Range minimum, can you advise on a recommended battery capacity (yes I know weight also plays a factor).
I built my battery pack myself, 16s(60v) 6p(1 KWh) and with my 26″ mountain bike setup I can get around 30km – 45km depending on weather and riding. the whole thing cost me $350 tho lol.
Hello again,
I have a few more questions:
1. How many watts does it draw on 72v witj no load?
2. What is the maximum and minimum and minimum watt draw?
3. Does the controller have regerative braking?
hello,
I am looking for a brushless hub motor for an electric reverse trike build,
it will need to be mounted to a 22 inch bike wheel, be powered by 48 volts, 60 – 70k/hr,
and it needs plenty of torque for rough surfaces.
shipping to Texas, USA
let me know if you have any that meet these requirements,
thanks.
I suggest a 60v or 72v 3kw motor.
At 72v, what is the maximum and minimum power draw of this motor?
Thanks.
the no load current is 3A.
To UU Motor
Same here for e-Cargo Trike (planned commercial fabrication).
Thanks
What would be a 50cc moped in hub motor size, 3 or 4kw?
1000w is also ok.
I have a Dnepr side-car MC, 19″ rim. I want to electrify the free-running side car wheel. 5KW will suffice and it must roll 700 rev/min maximum. Can U supply, including a sine-wave controller. How much for the goods and for the delivery – to Sweden. /SL
Hello Sten. I have excactly the same idea to electrify my DNEPR . Have you already done some works on your mc? Have you got any answer from this manufacturer?
Hello,
I am interested in this product. Is it possible to get this engine with 4 kW? If not I think the 3 kw is enough to accelerate 200kg to 60km / h. How big is the control box for the engine and is it waterproof? Does the engine support recuperation? Is it possible to install a disc brake instead of the sprocket?
Thanks for your help
Stefan from Germany
I would like to know this too. Does it have regenerating brakes? If not do you have a different controller option with regenerative braking? Would also like to know if the controller and hub are waterproof and down how many meters.
Thanks
hi I am looking for the dimensions for the 5kw motor.
and if it is possible to mount it on a 29 in rim for a mountain bike?
we have 28 inch motor wheel.
Hello, I’m looking for a 48v 3000watt 16” rim
Thank you
we have electric motorcycle motors with this here https://www.uumotor.com/webstore/motorcycle-motor
Is it possible to get 19inch moped/motorcycle rim with 1000w 48v hub motor? 3000w is too much :/
Hi
I want the 3kW motor, and can provide 72V
Please send me the full datasheets whit curves of torque speed and the whole and all.. .
And the best way of ordering and payments and delivereringtimes to ship/fly it to Norway
I want to convert an old motorcycle into an electric one, do you have wheels in 19 inches? possible delivery in France?
thank you very much
sorry that we do not have 19inch rim
Bonjour Aurelien,
je suis sur un projet moto electrique de petit gabarit ( type 125cc equiv.)
je collecte les infos en ce moment mais pas evident du tout
mon projet est aussi sur du 19″
a biento j’espere que l’on echange sur ce sujet
Cdt
Lolo
I would like to convert a 17 inch scooter (Simson Schwalbe 1976) that should go 60kmh, which motor and voltage do I need? And would a drumbrake fit? Do you ship to Germany? Thanks!
we ship to Germany, and for the 17 inch scooter, We have electric motorcycles motor may fit you here https://www.uumotor.com/store/26-electric-motorcycle-motor
Can the 3000w 48v motor hub fit on a regular 26″ mountain bike? Thanks
Yes. We can.
Hi! Does the 5 kW hub motor (96v) have the same dimensions like on the drawing above? And do you have 17 inch rim size with 3.5 inch width? (for 120/70 r17 tire)
Yes, it is ok.
Hi, how much for shipping 3kw motor to India. And is there any motor under $300 which can give a top speed of 50-70kmph
what kind of battery would you need to power the 5k motor for long distance
Also, i’m trying to fit it to a Honda cub and so there is a large compartment space in the fuel tank. A previous version of this build was made by shanghai customs but i cannot find where they have gotten their motors, controllers and batteries from
currently, we do not have such big battery.
looking for a motor for motorcycle 18inch rim. 60v bike and rider weight is just under 300kg.
can you tell me what motor i need? and what a guestimate of the top speed would be..
also how much for shipping to australia?
you may need this motor https://www.uumotor.com/webstore/scooter-motor/60v-1000w-brushless-dc-fat-tire-motor
Hi what is the highest wattage motor that can be mounted to a 16 inch bike rim? Also is the 16″wheel compatible with rim brakes? Thanks
this one 96v is the highest, and it is ok to use rim brake, but it is better to use disc brake.
What would be the concern if I took the 96v 21 inch hub and replaced the rim with a 26″?
that 21 inch rim is not for bicycle, it is for motorcycle.
Hello there,
I’m thinking about getting a 96v 5kw motor with a 17″ motorcycle rim. What type of top speed would I be a able to expect with that setup? And also, what is the selling price for such a setup shipped to Oregon (USA)?
The top speed is 70km/h. We have the motor,controller, throttle and so on included in the kit, you need to buy battery. We do not have battery.
Hi I would like a 3kw rear hub motor kit built into a 24 inch wheel.
I would like to be able to archive 60-70 km per hour.
Please can you tell me the price and shipping cost to the UK.
Thanks
to use 60v or 72v 3kw motor, the speed is ok to reach 60km/h
What is the price and cost of shipping to the UK and how do I order?
I need a 5,000 hub motor for my fat bike 26×4 with speed gears, and an rim with spokes if possible please.
what voltage and speed do you need?
The highest speed gear and what do you suggest a 72v for a 5,000 watt hub motor with a LCD?
the high speed is about 60km/h
Hey I need a motor for converting my CVT into a hybrid one I need a hub motor for the rear wheel 90/90-12,tyre dimension
I need a top speed of about 60-80
Can you suggest me a motor for this
With web link for the motor would really help..
Or where could I buy
I need to run it at a minimum speed of 25kmph for 10 km at a max battery consumption of 1kwh ( this is the rule for the compition)
Please help me with this
I am sorry that we do not such motor yet.
Atleast a motor for a 12inch tyre and a top speed of 40-50?
for the motorcycle motor here is ok https://www.uumotor.com/store/14-12-inch-motorcycle-motor
I want bldc hub motor to carry 180 kgs with the speed 50 to 60 kilometres please reply to me how much kilowatts I need to use
you can use 60V 1500W version.
I want 17 inches Bldc hub motor 1.5 kilowatt which can carry the 180 kilograms weight.please reply to me fast
What would be the suitable battery volt and ampere to run 3kw bldc motor in its top speed?
Top speed is 50k/h. The battery depends on you.usualy 15ah,20ah or 30ah is ok.
I want to convert a gas scooter/motorcycle with 10 inch tire, what should I buy, a 10 inch hub motor or lower size hub motor? If i order hub motor does it come with kit for my converted scooter to be a fully operational e-scooter? do you deliver in the Philippines or you have a distributor or dealer there?
you need this motor https://www.uumotor.com/store/13-10-inch-motorcycle-motor
Tony,
1. Can I use sealed lead acid battery on hub motor controller?
2. your recommended 10 inch hub motor does it come with complete set, controller, throttle grip, disc brake, brake handle or must be ordered separately?
we do not have that 10inch motor controller and other parts. The sealed lead acid battery is ok.
How do I program this controller ? Is it Bluetooth or USB ? Do you sell a cable to program it or it for factory use only ?
Will it run at 36 volts ?
HI,
Does the controller support a digital interface?
1. Trottle input
2. Wheel rotation sensor output
Best regards
Leif Auke
No. It does not support this.
hi,i m looking for 3kw hub motor kits.How much does it cost and how much does shipping cost to Malaysia ?How long does shipping takes?Do you supply battery and charger?
Sorry, this kit does not include battery.
hi,i m interest on your 3kw electric motor.Is it comes in one set which include the throttle,controller,brake ?Does you supply battery and charger also?How much of the set and the battery? Does it possible to shipping to Malaysia and how long it takes?How long warranty for the motor and others components?
we can supply all the kit, motor, controller throttle, and so on. However, we do not supply battery any longer.
What will happens if supplied power will be not constant but changing?
I need a. 5kW 21″ front hub wheel for my off-road bike, so is your motor fully waterproof? I was aiming only to use when its required for hill climbs and deep mud, using 96 volt battery.
What is your price to the UK for a hub wheel and controller?
regards,
Stuart
Stuart
It is a pity that this motor is not a totally water proof motor. The size, voltage and power is no problem for this motor.
Hi, I’m Matías Díaz and I’m building and electric tricycle for an electric car competition and I would like to check if your 3 or 5 kW hub motor could satisfies the following requirements:
To drive a 200 kg vehicle, running 3 hours per day
To reach 60-70 km per hour peak.
Rear wheel, 26″
Disk brake
Accessories includes: throttle, brakes, cruise speed
48V
Optionals:
Regenerative brake
LCD display
Pedal assistance system
If your kid could feet to the above requirements, how much does it cost?.
Moreover, how much and how long could take the shipment to Chile -please consider an express shipment method-.
I look forward to hearing from you.
Regards!
Am I able to get a 5kw 19″ kit with a rim to suit fat tires and disc brakes?
How much would it cost?
Do you ship to Australaia?
The price will be USD660 and the shipping cost will be USD150
Hi i woud love one of ur 3kw kits for 26 inch mtb with batery pack can u tell me how much it will cost me with shiping to the uk
thanks
it is USD610 including shipping cost
Hi
I want to know that how much torque 3 kW of your hub motor produced ??
I need it for 17 inch of my motorcycle.
Do you have any performance testing on 3 kW of motor ?
Thanks
Good morning, my name is Enrico Carmellini, usually do e-bikes very powerful and beautiful. However, for an experimental vehicle, they need from you, or from a competitors, 2 motors inside a wheel.
Each wheel must mount a tire from 110/80 R19.
From this it follows that each motor must be within a wheel rim for motorcycle 19 “.
The power must be from 5000 Watts, to have a lot of shooting and the minimum torque shall be 120 Nm for each motor.
I need the kit complete with control unit and connecting cables and programming (number two complete kits).
Can you help me, please ???
My website:
http://www.mtb-elettriche.it
http://www.mtb-elettriche.com
http://www.mtbelettriche.com
http://www.mtbelettriche.altervista.org
Best regards and thanks.
Enrico Carmellini
For the 19inch motorcycle wheel is no problem, 5kw is the max power we can do now
l want motor & battery detail for trike having 200kg weight. Also prise & shipping charges.
we do not have battery. For the 200kg, a 2kw or 3kw motor is ok.
Hello
If we are interested to buy some motors and parts from you.
Who would be our contact person?
Name, e-mail etc?
Thank you and
regards
Please email to sales@uumotor.com
Do u offer fatbike rims 80mm? In 5kw? With 180mm diskbrake? 135mm dropout
hi Julien, we can offer fatbike rim but the motor droupout size is not 135mm.
can we purchase in India…
Sorry, we donot have dealers in India.
I need this motor for a bicycle. Can you make:
10mm axle
4turn stator (slow wind)
So it accepts regular bicycle disc brakes.
Also, what is the with of the stator?
Thank you!
We have 2kw and 3kw version can work with the bicycle rear wheel, but only can adapt with single speed gear.
Wheelsize 26 whats the speed and the sizes of the 3000w
The top speed is 60km/h.
I am interested in the 3000w motor.
will this fit onto a regular 26” rim bike
currently we only can offer 17inch wheel rim.
can i add rear multi cog set instead of the single bronze cog in picture?
For gearing.
Thanks
no. the dropout size is not big enough.
im interested in 5 kw hub motor with rim. hill climbing and speed is important so what batteries do you recommend?
looking at good range.
luke, sydney australia
what wheel size do you like?
I’m interested in the 5kW version motor.
1. Can it be for 26″ with 1.95 inner tube wheel? What is the lead time?
2. Can this be mounted to the front wheel?
3. Do you have a picture for the throttle control and other accessories?
4. How stable can you hold a certain speed?
5. What type to battery do you recommend?
The motor is usually for motorcycles, the max wheel we have now is 21 inch.
From the description, is the 3kW for bicycle and 5kW for motorcycles? Is there a dimension difference between them?
Hi, I am interested for 3 kW hub motor with disc brakes for motor cycle conversion. Wheel size 19″ and weighing 190 kg, with gas engine. Kindly suggest me on the batteries size/weight suitable for this conversion with LiFe P04 batteries. Further to my querry , if I can use two hub motors simultaneously for a trike of same capacity. If so will both the hub will move with one throttle ? And kindly update if shipping can be in India also. regards
It is battery to use a 40ah or higher capacity battery. To control by only one throttle is ok.
If I would like to buy one motor which is like Steve’s wishes (60V 3KW version and Max speed is 80km/h), Can You help me for batterys. I would like to drive more than 250km nonstop. So, I would like to know batterys capatiy and battery pack price for it.
I also check shipment price, It’s very expensive for me. Can you send me motor and battery pack by china post free? Or, If you send me by china post, How much I’ll pay for Izmir port in Turkey.
Thx for your help.
To drive 250km, it is too long. That will need a very big battery. For the 3kw motor, a 60v 30ah or 40ah battery is ok.
How do we purchase. I cant find this product on your site
Email us at sales@uumotor.com about what wheel size and power version do you need, we also your shipping address.
We will email you back about the pricing and payment motheds.
How many amps does the 5kw version draw @ 72v?
It is about 65A.
Hi
I am looking for a 26″ bike conversion complete kit rear wheel with a motor that can go up to 70-80kmh.
Do you have one available for shipping to USA Florida?
Thanks
Hello Steve,
We have to make the motor for you, the lead time is 10 days. I suggest you buy 60V 3KW version, price USD610 and shipping cost to USA is USD200.
Total cost USD810.
