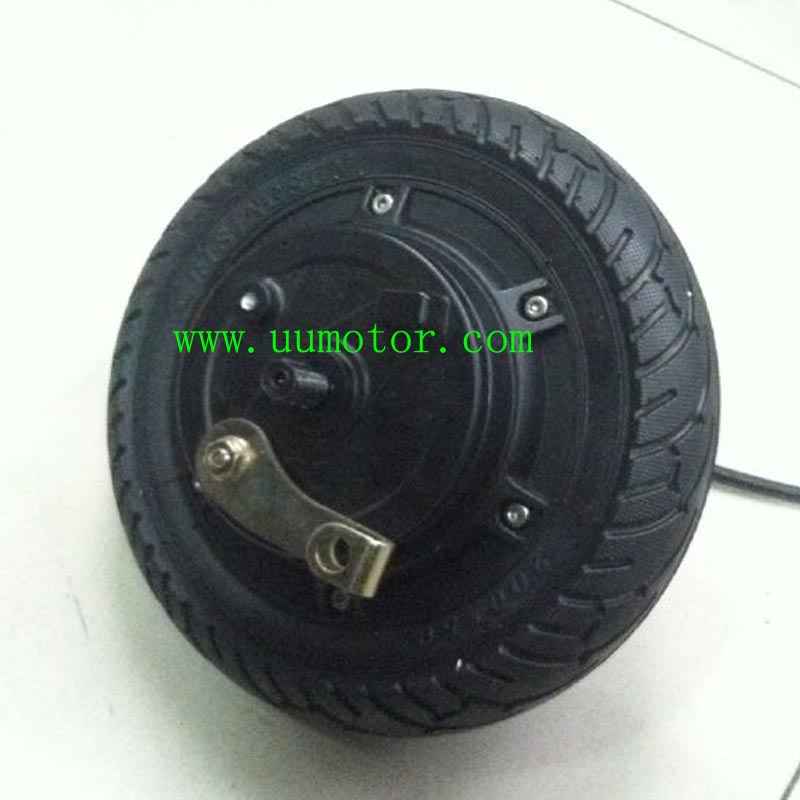

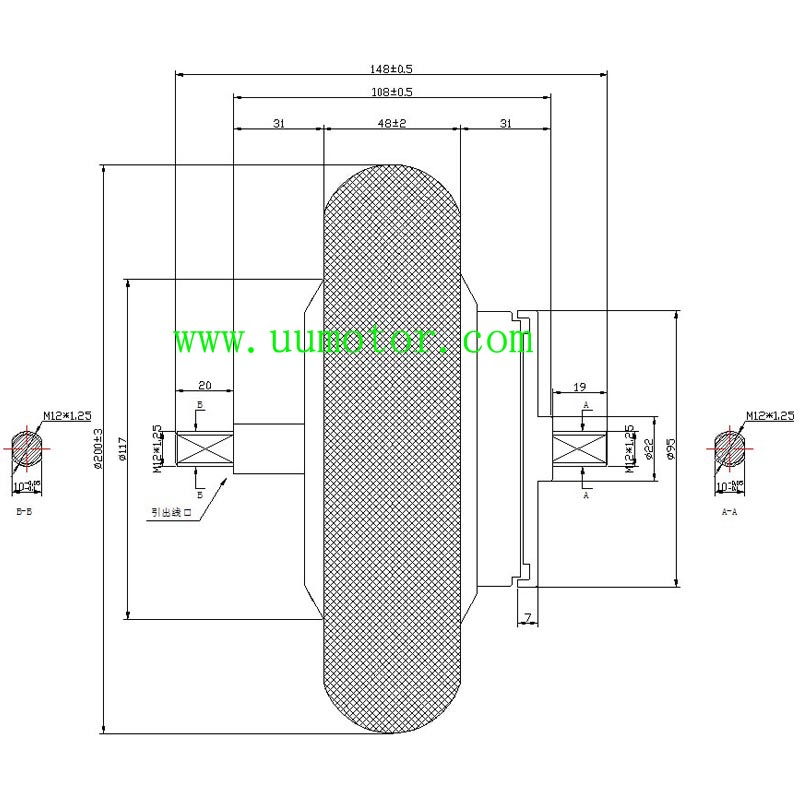

HB8GD is a thin 8 inch hub motor is gearless, drum braking. Motor Weight: 3.2kg. The tyre size(hollow non-inflatable tire) is 200mm, dropout size is 110mm. For a controller and motor kit, please refer to this https://www.uumotor.com/8-inch-drum-braking-electric-scooter-conversion-kit.html
The standard version is 36v 350w, max speed 35km/h.
Motor power and speed customizable range:
Voltage: 24V,36V,48V
Power: 200W to 350W
Speed:400RPM-1500RPM
Model: FL10U Price: USD135 48v 350w 15km/h brushless geared hub motor. 80/60-6 fat tubless tire. This is good for elder…
Model: M3PI Price: USD145 Now We have this motor with several tire version, you can follow these link 14.5 inch wheelbarrow…
Model: XD12 Price: USD165 It is a 12 inch light weight electric wheelchair motor. The motor with tire is only…
Model: KK61365 Price: USD170 13 inch mono shaft 48v 800w road geared hub motor for electric wheelbarrow, it is geared…
The shaft is a completed new design splined shaft and increased the shaft diameter to 24.39mm, there will…
The shaft is a completed new design splined shaft and increased the shaft diameter to M18,fat-14mm, there will…
Hi.
i am looking for buy 48v/500w/1200rpm/20N-m bldc hub motor with controller and throttle
In 8 inches diameter
please reply for the same
thank you
Please tell me the rated load and rated torque of this motor.
Also, is there an output graph?
NO this motor data.
Hi Tony – this looks at the motor for an Ecoreco L5 scooter. Do you know if that is correct?
I am looking for a 750w (or more) 48v version of this motor instead of 350w. Do you sell one?
Thank you from San Francisco!!
Sorry, we do not have such higher power of this motor.
Thanks Tony!
Do you have another motor that is this same size that would be 48v/750w or more? I don’t mind changing out the controller board either.
No. for this size motor, we do not have powerful version.
Hi, I need to convert a ordinary brush motor of my e scooter (nilox doc pro) to a couple of this brushless motors. Is it possible? Should I have to change just the motor or the control as well?
you need to change motor and also controller.
What is maximum/peak power in 36V version?
peak power 500w.
Hi I am interested in purchasing this item. How fast is your shipping to australia?
it usually takes 5-7 days.
Hi, i am interested in buying this hubmotor but will it be possible to make it a disc brake motor? 48V 1500rpm 450W or higher?
