Home » hub motor » Servo motor » 6.5 inch 180kg load servo hub motor
- Model: SVB6HS
- Price: USD165
RS 148.7mΩ;, Ld 360uH; Lq 360uH

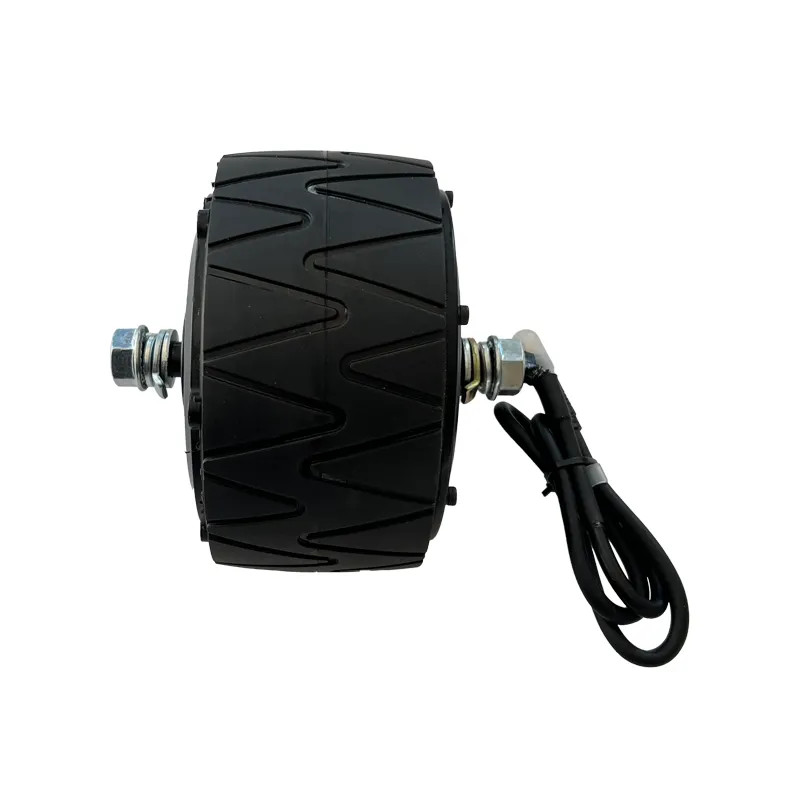

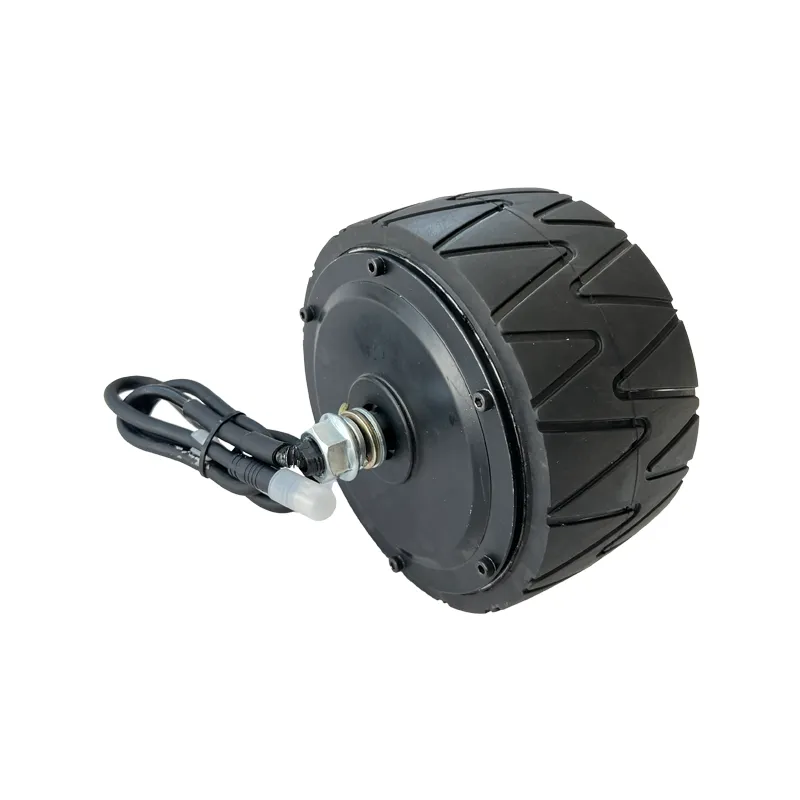

6.5 inch hub motor with encoder for robots, 20N.m- 40N.m high torque, max load 180kg with slow speed. We can also make such motor single shaft and dual shaft version. The motor is brushless hub motor with 1024 line Incremental Photoelectric Encoder and hall sensors. And also, we have an 8 inch encoder motor with the same performance. They are both good for Service robots.
| Voltage | 36V-48V | Motor weight | 4.5KG |
| Power | 350w-600w | Efficiency | >83% |
| Speed | 200-500RPM | Pole pairs | 15 |
| Current | 5-20A(peak 45A) | load | <180KG |
| Torque | 20N.m(max 40N.M) | Tire | Hollow rubber tire |
| Diameter | 168mm | Waterproof | IP65 |
| Encoder | 1024 line Incremental Photoelectric Encoder | Sensors | Hall sensors |
Category
Tags
4 inch hub motor 5 inch hub motor 6 inch hub motor 8 inch hub motor 8.5 inch motor 10 inch hub motor 12 inch hub motor 13 inch hub motor 14 inch hub motor 15 inch hub motor 16 inch electric bike conversion kit 16 inch hub motor 20 inch hub motor 90mm hub motor 250W electric bike conversion kit 250w motor 350w motor 500W electric bike conversion kit 500w motor 800w motor 1000W electric bike conversion kit 1000w motor 3000w scooter motor 3500w hub motor disc brake motor disc braking motor drum brake hub motor e bike motor electric motorcycle motor electric scooter motor electric scooter motor kit electric trike kit electric wheelbarrow motor electric wheelchair motor Geared motor high speed motor hub motor with encoder in wheel hub motor low speed high torque motor mono shaft motor pneumatic hub motor pu tire motor servo hub motor single shaft hub motor wheelchair motor kit
14 responses to “6.5 inch 180kg load servo hub motor”
I sent a mail to sales@uumotor.com about this product, could you please check it.
thanks.
We have replied you. Did you get our email?
Yes, thanks.
Hi sir,could you please suggest compatable controller for that motor and if you can able to supply controller also that is very helpfull to us.
Sorry, currently, we do not have a servo controller yet.
Do you have torque-speed curve or power-speed curve data about this motor?
Not yet.
Dose “Max. Load 180Kg” mean for one single motor?
So if I use two motors for robot’s both side wheels, that means max. load will be 360KG(or the max. weight of the robot could be 360Kg ) and the robot will be with 40N.m rated torque for traction to move, right?
Thaks for your reply.
yes. It is single motor load.
Thank.
I just want to make sure how much weight could be designed for the robot(Max. weight 360Kg is OK, right?) if I use two of this motor.
Thank you.
Yes, use two motors, that is power enough.
Thanks!
How much ??$$$
if you only buy one sample, the price will be the same as shown on the page.
