- Model: SVB8S
- Price: USD165

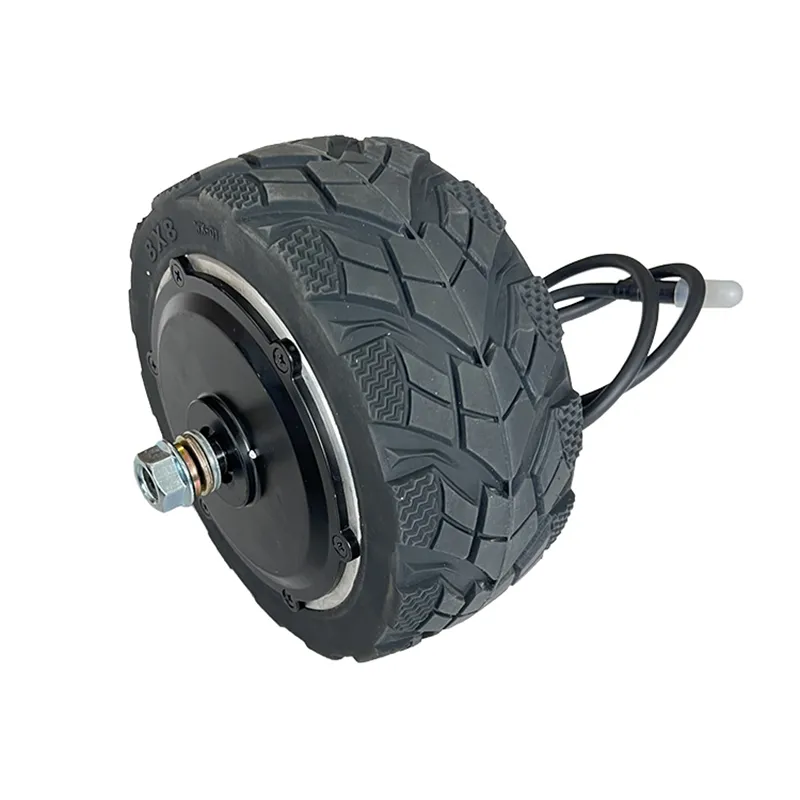

high torque 8 inch servo hub motor for robot. The motor is wth encoder and hall sensors, a gearless brushless dc motor, more durable. The rated power is 500w. We can also customize the motor data as per customer request. It only has single shaft veison now, this is becuse we updated the encoder to magnetic increment encoder. If you need a smaller such motor, you can find our 6.5 inch servo hub motor.
Rated voltage: 36v-48v
Motor weight: 4.2kg
Efficiency:83%
Poles: 15 pairs
Rated Power: 350w-500w
Rated speed: 400-500RPM by controller
Rated current: 5-20A(peak current 45A)
Rated torque:20N.M(peak torque 40N.M)
Max load: 180KG
Diameter: 200mm hollow rubbertire
waterproof: IP65

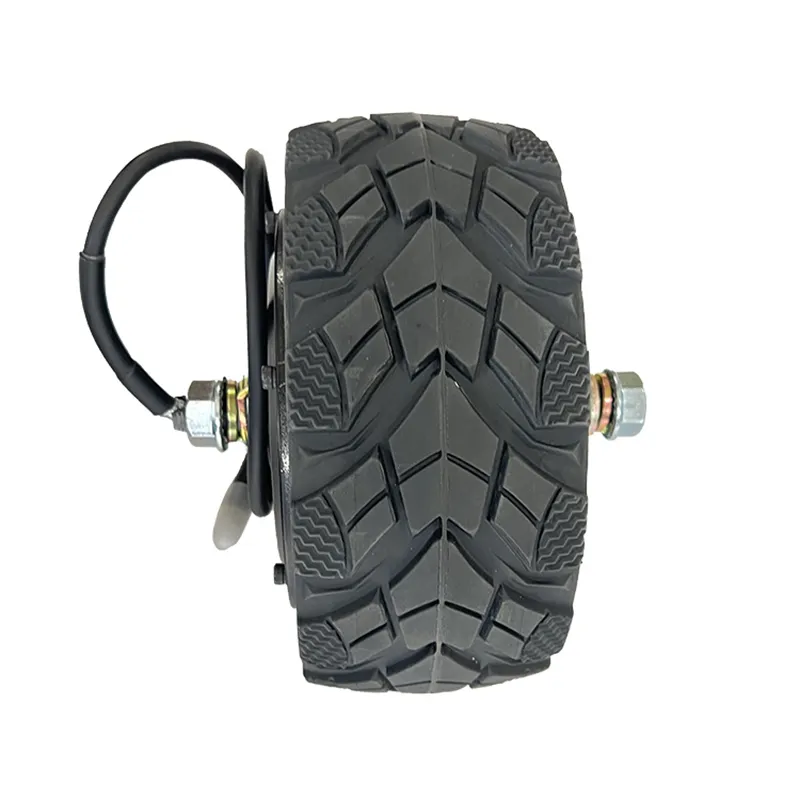

Encoder type: 1024 line Incremental Photoelectric Encoder
Category
Tags
4 inch hub motor 5 inch hub motor 6 inch hub motor 8 inch hub motor 8.5 inch motor 10 inch hub motor 12 inch hub motor 13 inch hub motor 14 inch hub motor 15 inch hub motor 16 inch electric bike conversion kit 16 inch hub motor 20 inch hub motor 90mm hub motor 250W electric bike conversion kit 250w motor 350w motor 500W electric bike conversion kit 500w motor 800w motor 1000W electric bike conversion kit 1000w motor 3000w scooter motor 3500w hub motor disc brake motor disc braking motor drum brake hub motor e bike motor electric motorcycle motor electric scooter motor electric scooter motor kit electric trike kit electric wheelbarrow motor electric wheelchair motor Geared motor high speed motor hub motor with encoder in wheel hub motor low speed high torque motor mono shaft motor pneumatic hub motor pu tire motor servo hub motor single shaft hub motor wheelchair motor kit
16 responses to “high torque 500w robot 8 inch servo hub motor”
I need the engine drawings, performance curves and test data ofthe 500 watt motor
Thank you for your availability
Wow, this is a very thing I’ve been looking for!! I wanna buy it but I have few questions.
1, Is there a same motor with double shaft?
2, Where can I buy motor driver to control it
3, Where is purchase page?
Trying to build a barstool racer looking scooter.
How do I determine the wattage and the voltage size?
What determines power and speed. Doesnt have to be super fadt. 15-25 mph
Do they go forward and reverse?
Matching front wheels with no motors?
Do they meed brakes or do they stop on their own.
You may need two single shaft hub motors. It should be as this one with big tires https://www.uumotor.com/9-10-13-15-350w-500w-800w-mono-shaft-motor.html
Yes
Do those go forward and reverse?
Break on their own?
Matching wheels and tires without motor for front ?
How fast will they go?
The motor is gearless motor, and it is ok to go forward and reverse, and it should be braked by controller, we can make the no drive wheel as the motor. For the speed, we can customize it as per your request, it depends on your application.
Do you make hub motor go kart fat wide wheels. Similar speed.?
What does the different volts do?
I left a reply but it seems to have been erased.
Can this product(SVB8S) be fitted with wide deep off-road tires?
It doesn’t matter if the wheel diameter gets a little larger because of it.
I am looking for high torque and slow speed, about 150~200 rpm, 40n.m
Drive voltage is 36V.
I hope you provide me the technical doc for this product.
The motor power and torque is ok for you, but for the tires, it needs customize for you.
Can you equip this product(SVH8B) with wider deep off-road tires?
It does not matter if the diameter is a little larger.
can you provide me technical document?
I need these wheels for a differential drive robot of 200 kgs .
I want high torque and slow speed may be 150~200 rpm. my driver voltage is 36v.
Do you need 8 inch deep off-road tire? or what other wheel tire size?
I need about 10 inches.
Is it possible?
Yes, we have the 10 inch hollow tire one here https://www.uumotor.com/high-torque-500-1000w-servo-hub-motor.html
Can these motors operate at 24V?
The motor is ok to run from 24v-48v.
can you send me more documentation about this wheel Model: SVH8B.
I need to control the wheel for a robot, how many hall sensors does it have (how many poles)
Do you have any samples for doing the basic controller moves.
I need 2 of these wheels for a differential drive robot of 200 kgs. I want high accuracy, high torque and slow speed, may be just 60 rpm. my drive voltage is 48 v.
Thanks for your reply
