electric trike cargo kit with differential gear bridge

Home » Electric trike kit » electric trike cargo kit with differential gear bridge
  • Model: UDB101

MOQ 10 SETS, this quality electric tricycle only accepts bulk order unless you can bear the high shipping cost for the air shipping for one set sample. The motor power range from 800w to 2000w.

We have new electric tricycle kits available at online shop.

tricycle gear bridge kit
UDB101-A, the normal tricycle kit with gear bridge

UDB101-A power verion and price:
1. 60v 1000w USD375
2. 60v 1200w USD385
3. 60v 1500w USD395
4. 60v 2000w USD415
5. 72v 1000w USD385
6. 72v 1200w USD395
7. 72v 1500w USD415
8. 72v 2000w USD435


tricycle gear bridge kit 3 speed version
UDB101-B the 3 speed switch version

UDB101-B power verison and price:

1. 60v 1000w USD438
2. 60v 1200w USD448
3. 60v 1500w USD458
4. 60v 2000w USD478
5. 72v 1000w USD445
6. 72v 1200w USD465
7. 72v 1500w USD485
8. 72v 2000w USD495


tricycle gear bridge kit new gear bridge
UDB101-C 48v/60v 800w and 48v/60V 1000W new version

UDB101-C power version and price:
1. 48v 800w USD365
2. 48v 1000w USD375
3. 60v 800w  USD365
4. 60v 1000w  USD375


trike motor controller kit
UDB101-D electric trike conversion kits without gear bridge,800w to 2000w

UDB101-D Power version and price:

48v 800w  USD248
60v 800w  USD248
60v 1000w USD258
48v 1000w USD258
72v 1000w USD258
60v 1200w USD268
72v 1200w USD268
60v 1500w USD278
72v 1500w USD278
60v 2000w USD298
72v 2000w USD298

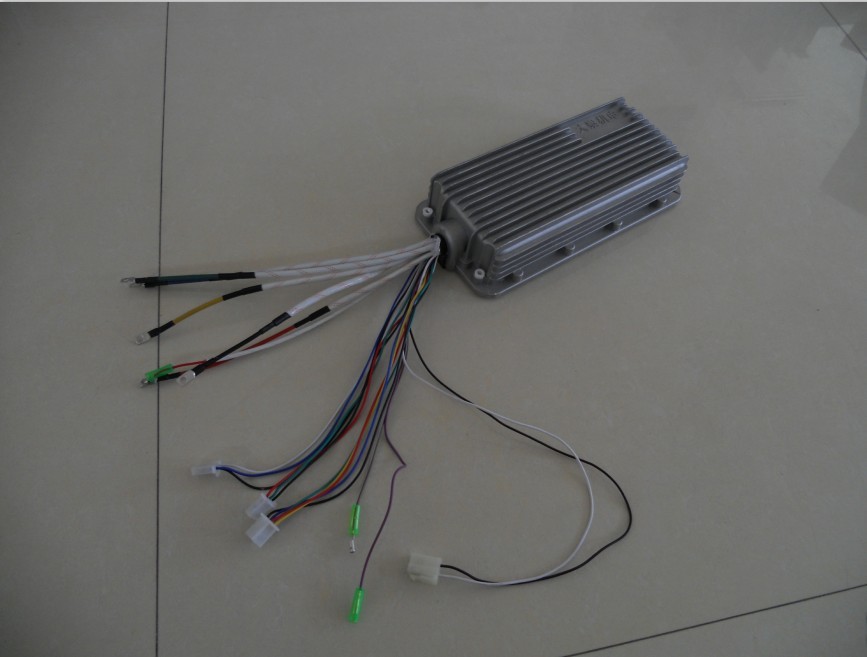

DT gearbridge gear size DT gearbridge gear hub sizetricycle gear bridge kit packing trike motor controller kit motor trike motor controller kit controller trike motor controller kit 2

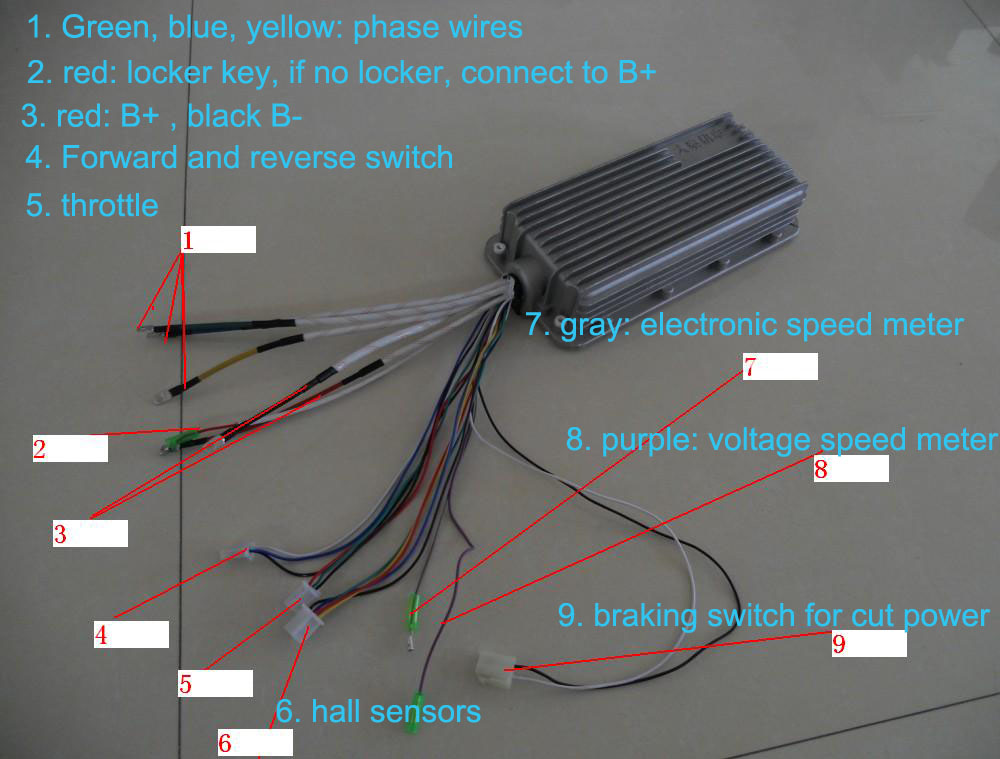

dt-controller wires

Rated   voltageRatedRatedSpeedRatedmaxmax load Maximummotor details
 current Power torqueLoadspeedspeed Eff%
48v25A800w3000-3200rpm35N.m500kg30km/h35km/h83%
48v28A1000w3000-3200rpm40n.m700kg30km/h35km/h83%
60v25A800w3000-3200rpm35N.m550kg30km/h35km/h83%
60v28A1000w3000-3200rpm40N.m800kg30km/h35km/h83%
60v30A1200w3000-3200rpm45n.m900kg30km/h35km/h83%
60v32A1500w3000-3200rpm55N.m1000kg30km/h35km/h83%
72v28A1000w3000-3200rpm45N.m800kg30km/h35km/h83%
72v30A1200w3000-3200rpm55N.m900kg30km/h35km/h83%
72v32A1500W3000-3200rpm65N.m1100kg30km/h35km/h83%
60v40A2000w3000-3340rpm85N.m1200kg40km/h45km/h84%
48v35A2000w3000-3340rpm80N.m1100kg40km/h45km/h84%
RatedMaximum limitunder   voltagebrake handle   voltagebrake blackoutcontroller details(note, Dual   mode brushless controller,if the motor have not hall ,it also can work very   well)
voltagePower
48V800W75A41.5±0.5V  1.2-4.3Vlow   level
48V1000W80A41.5±0.5V  1.2-4.3V
60V800W75A50.5±0.5V  1.2-4.3V
60V1000W80A50.5±0.5V  1.2-4.3V
60V1200W85A50.5±0.5V  1.2-4.3V
60V1500W90A50.5±0.5V  1.2-4.3V
72V1000W75A 63±0.5V  1.2-4.3V
72V1200W80A 63±0.5V  1.2-4.3V
72V1500W85A 63±0.5V  1.2-4.3V
60v2000w100A 63±0.5V 1.2-4.3V
48v/60v/72v2000w95a       63±0.5V       1.2-4.3V

View details electric trike kit specification.
