- Model: M3PT
- Price: USD145

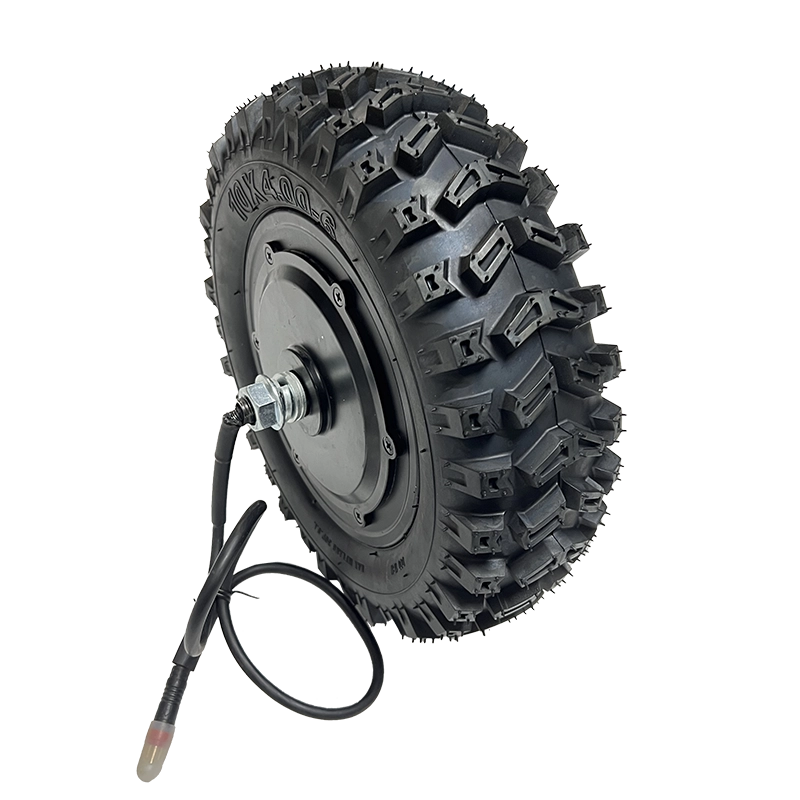

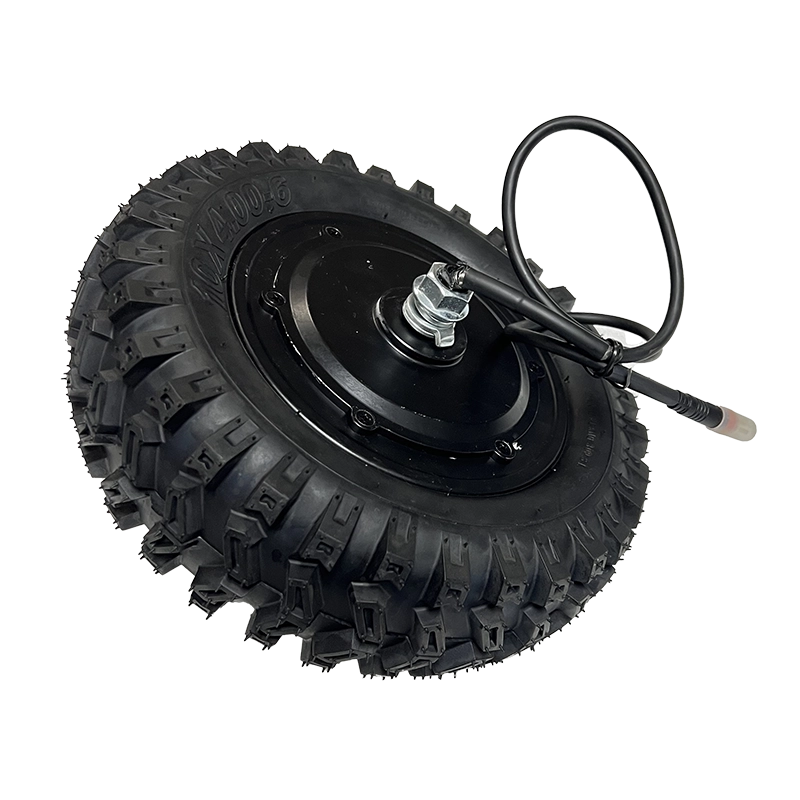

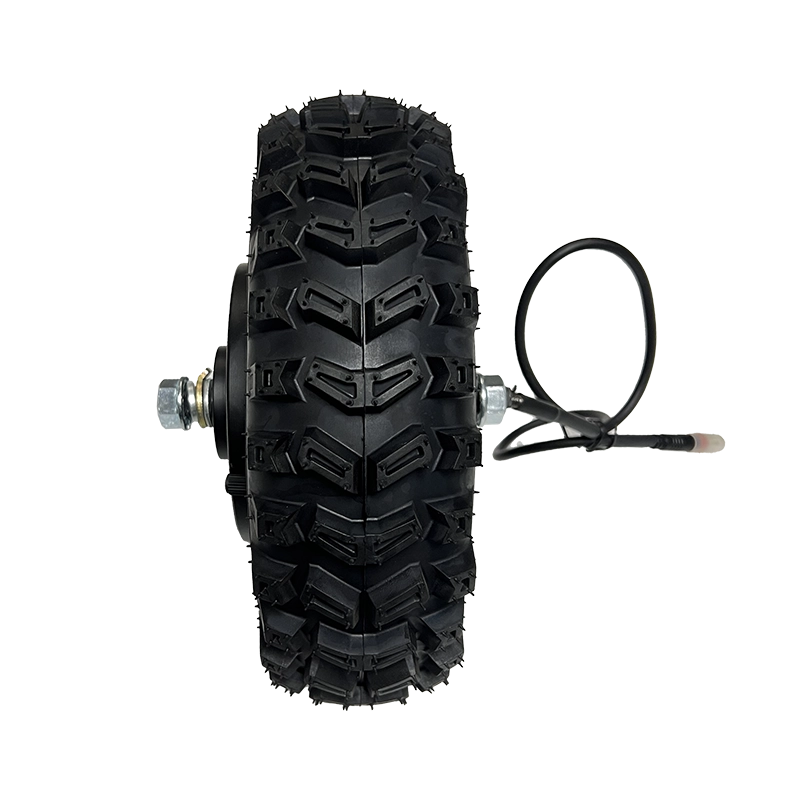

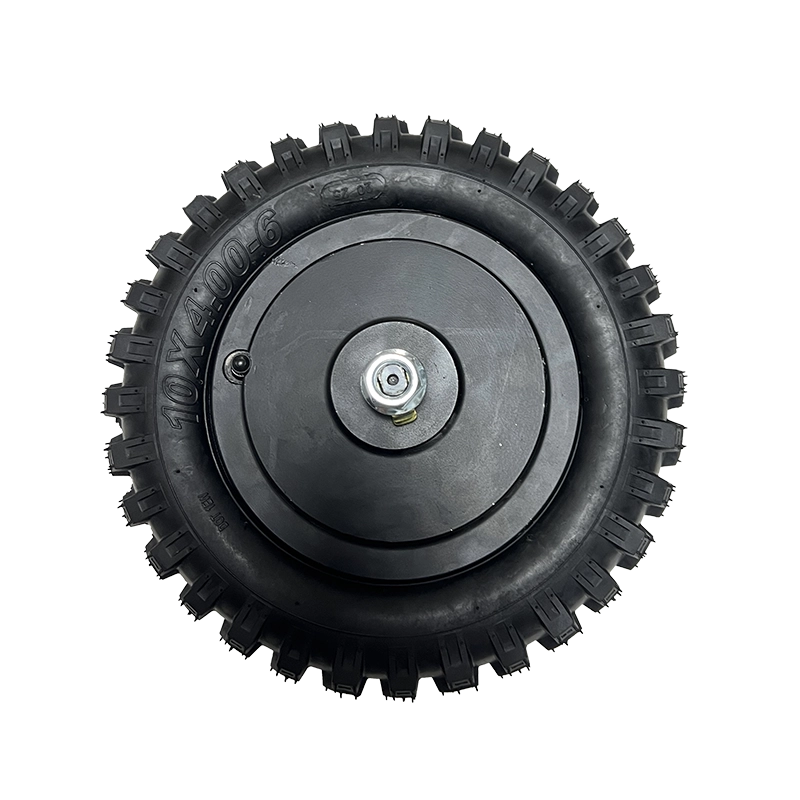

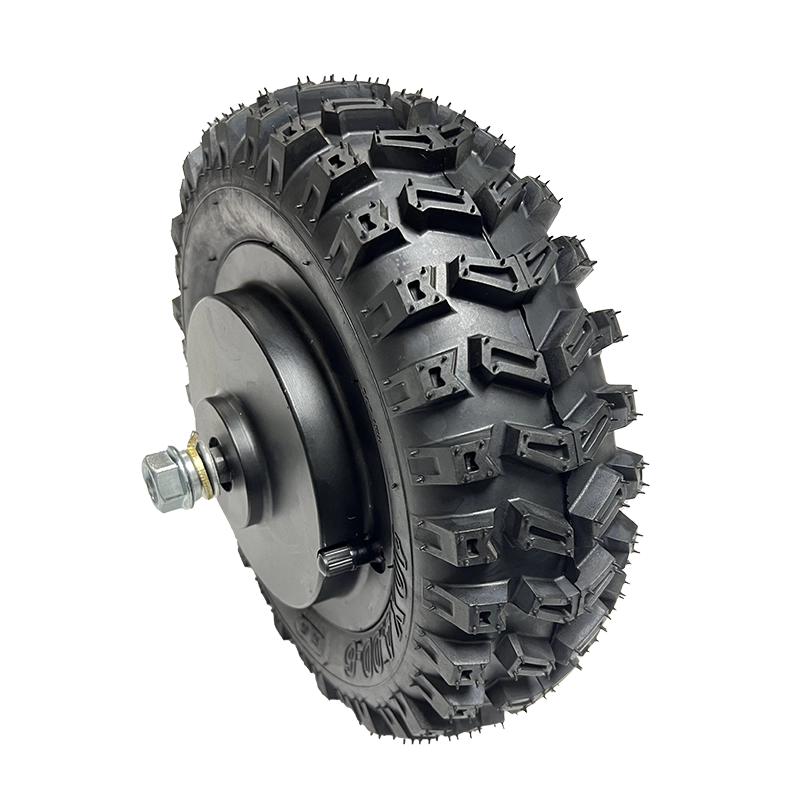

M3PT is a disc braking 10 inch brushless geared hub motor 500w, for electric mobility scooter, electric wheelchair, wheelbarrow and so on. It is reversiable and you can buy this electric wheelbarrow motor online.
Rated voltage: 48v
max speed: 200RPM
motor diameter with tire:250mm
max torque:59N.m
Motor tyre size: 10×4.0-6
This motor is available to assemble the disc brake
Net weight:7kg(with tyer), 5.3kg(without trye)
We also have a gearless high speed 10inch motor which have the same tire here 10 inch scooter hub motor tubless air tyre.
Category
Tags
4 inch hub motor 5 inch hub motor 6 inch hub motor 8 inch hub motor 8.5 inch motor 10 inch hub motor 12 inch hub motor 13 inch hub motor 14 inch hub motor 15 inch hub motor 16 inch electric bike conversion kit 16 inch hub motor 20 inch hub motor 90mm hub motor 250W electric bike conversion kit 250w motor 350w motor 500W electric bike conversion kit 500w motor 800w motor 1000W electric bike conversion kit 1000w motor 3000w scooter motor 3500w hub motor disc brake motor disc braking motor drum brake hub motor e bike motor electric motorcycle motor electric scooter motor electric scooter motor kit electric trike kit electric wheelbarrow motor electric wheelchair motor Geared motor high speed motor hub motor with encoder in wheel hub motor low speed high torque motor mono shaft motor pneumatic hub motor pu tire motor servo hub motor single shaft hub motor wheelchair motor kit
36 responses to “10 inch 500w brushless geared hub motor”
After searching for weeks, this motor fits my project specs perfectly. But I would like a tubeless tire. Do you carry this geared motor with a no flat solid tread? Also, I want all tires to match. Do you sell motorless wheels that match this motorized one? I need geared for the torque but not the speed, which a max of 5mph is desired. THANKS!
this is a tubeless tire and the max motor speed is 200RPM, and if it works with our controller, no problem for low speed with high torque.
GOOD MORNING SIR,
DO YOU SHIP THESE PRODUCTS TO INDIA ?
I have a onewheel hover board and the motor went out trying to replace the wheel motor its 36v 500 watts 10inch wheel which one do I need and do you have it
sorry,we do not have onewheel hover board motor.
I need an motor with flexible air tyre 24 v dc, without sensor direct control, With high speed and reversible should be more than 300 rpm is it possible
the power and speed are ok. What is the size of the motor you need?
It should be near by 5 inch diameter and 2 to 3 inch height, tyre should have 10 inch diameter. Which must be air type and matching to the hub
please refer to to this motor https://www.uumotor.com/10-inch-e-scooter-hub-motor-brushless-200w-to-350w.html
Hi all. I’d like to know if you have a 10″brush less wheel with regeneration brakin system. It will be mounted on a scooter that runs top speed 80km/h. Would this brushless wheel help the standard engine to reach the top speed? The scooter is 80kg +80kg pilot. Looking forward to hear pricing and shipment cost to Italy.
Hello Alex, this 10inch motor is the size of tire. I think the 10inch motor you need is the motor rim 10inch, you could refer to our electric motorcycle motor
Tony,
1. The 36V 350W version of the HUB10EW, can go reverse?
2. If so, which controller I need for it?
3. What do you mean by speed 6km/h to 25km/h?
This motor is geared motor, we can customize it to go reverse and for the speed, it is 25km/h usually, if you need lower speed, we can customzie it for you.
You could check our new gearless version 10inch motor here https://www.uumotor.com/10-inch-scooter-hub-motor-tubless-air-tyre.html
Hi.
Can you send me the datasheet for this model and controller specification ?
Because i need to check it before buying 4 pc’s.
Also can i control the speed?
Hi am interested in HUB10EW
but wanted to can you have it reaching 45kn/h 48 voltts .
we have another motor which can customize this motor speed.
i need a hub motor having specifications
48 volt
500 watt….. ?????
Yes, we can make the 48v 500w version
Yes, we have 48v 500w version of this motor, you could email us for details specifiction.
Hello, I am very interested in: HUB10EW
Do you also sell the controller?
Can you send me any more info you have on it, including cad drawings?
I need a speed of around 15kph… size looks good, this might be just what I need.
Thanks!
We can offer you the controller. For the CAD drawing, it is not available now.
hi! I need a 18×9.5-8 wheel with a hub motor i would also need its controller. i would also require a wheel of the same size. do you produce such wheels? if not what is the wheel you manufacture which is closest to my dimensions.
thanks!
I am sorry that we do not have similar size motor for you.
I need a 8-10″ wheel with tyre 24v that will have an average speed of 3km/hr i.e. high torque and very low speed.
Wattage should be about 250w.
Is this possible?
We have 8 inch motor 24v 180w, max speed 4km/h.
Hello,
I’m interested in this kind of motor.
Do you have any specifications of this motor . I need low rpm(5-7)km/h and high torque,
what is the maximum torque ? Is it geared ?
Hi Konstantin, the current speed we can do is 15km/h. It is geared motor.
please refer to this motor https://www.uumotor.com/ws/p/6km-h-8-inch-brushless-geared-hub-motor/
Hello,
I am interested in HUB10EW hub motor.
can you please send me a drawing of this item.
Best regards,
Leon.
Hello, I might be interested in your motors for a future development project.
What if I requested max 6 km/h, how much torque could you make?
Regards, Alexander, OMAI Innovations.
Hello Alexander,
For 6km/h speed, that power do you need? For this motor, we can make it 10km/h usually.
Hello,
I’m interested in this kind of motor.
Can you customized this motor to higher outputs? Lets say 48v 1000-1500w.
Thank you
Hello Ari Dra,
It is a pity that this motor max power is only 350w.
hello. i have a few raycool electric scooters which i wish to convert to brushless hub motors like yours.
can this type fit easily ?
and whats the price + shipping to israel ?
thank you.
To israel, the shipping cost is expensive, it needs USD150.
Will this 380w 48v motor connect my control box??? Or otherwise I will need a new control box and a throttle…please let me know asap
