Home » Motor Controller » 24v-36v 40A electric wheelchair joystick controller
- Model: MX-WCDCS24
- Price: USD160
24v,36V, and 48V sine wave(foc) electric wheelchair motor controller, a new tidy compact powerful brushless motor joystick controller. It works for dual power EMB electric wheelchair motors. Now we have upgraded the controller can auto read motors data by PC programming software to let motors easy to work with our controller.
If you cannot find the right connectors to march our controller motor cables, you could cut off the cable connector and find the motor cables as this: thick yellow, blue, green cables are motor phase cable; thin red,black,yellow,blue,green are hall sensors cable; thin gray and white are emb braking cable.
Max continious current: 40A, working voltage 18V-60V, USB port for cell phone charging.

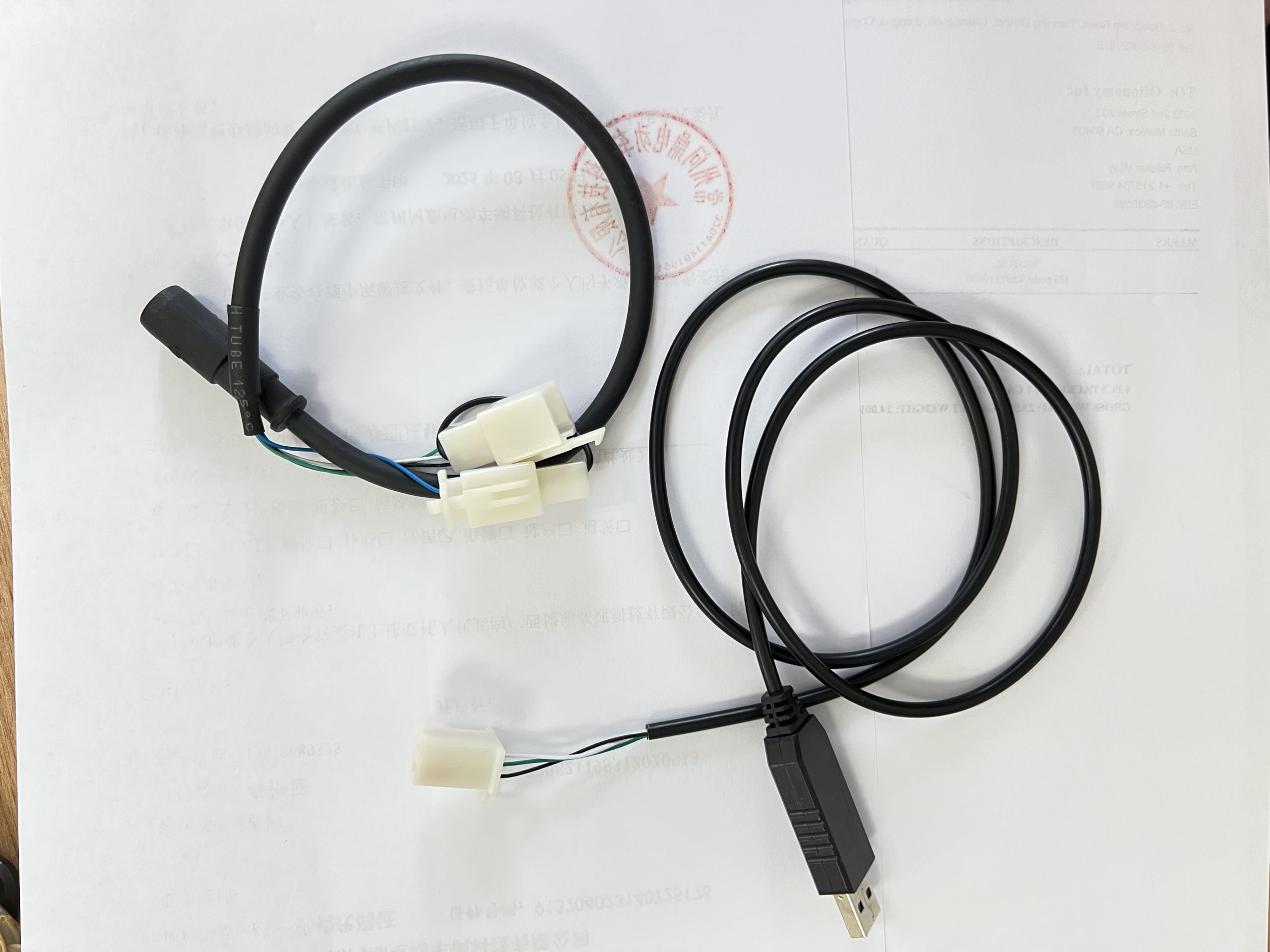

Download the following programming software and noted to turn off your PC anti-virus software first.
1.video shows how to download and install the programming software
2. electrict wheelchair joystick controller first time programming to get motor data and drive motors video instruction as follows:

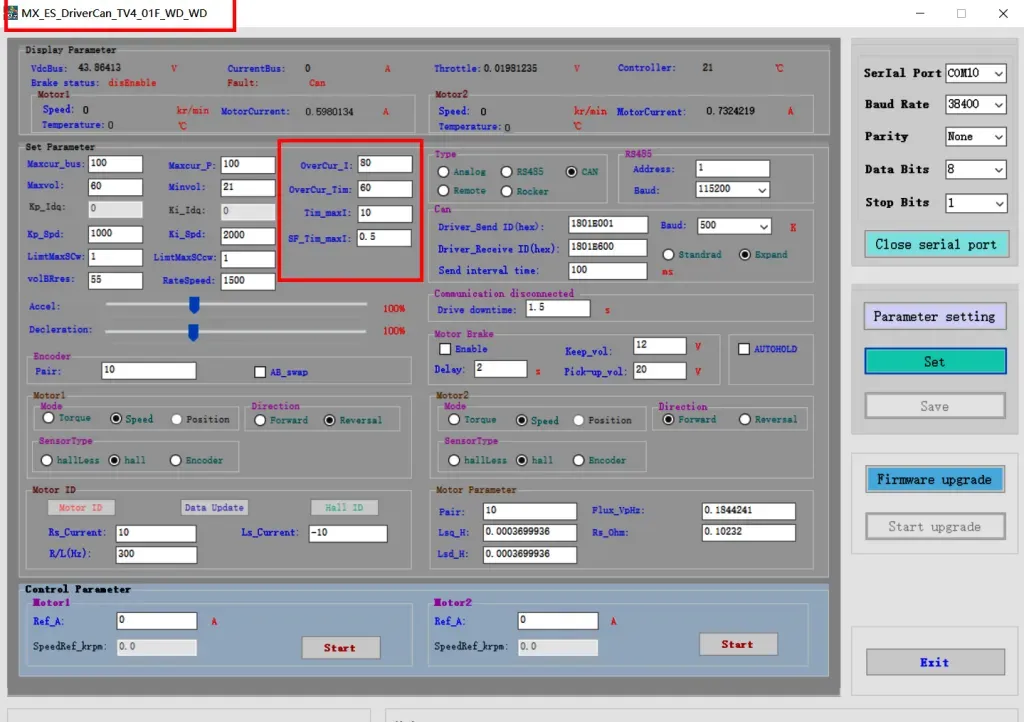

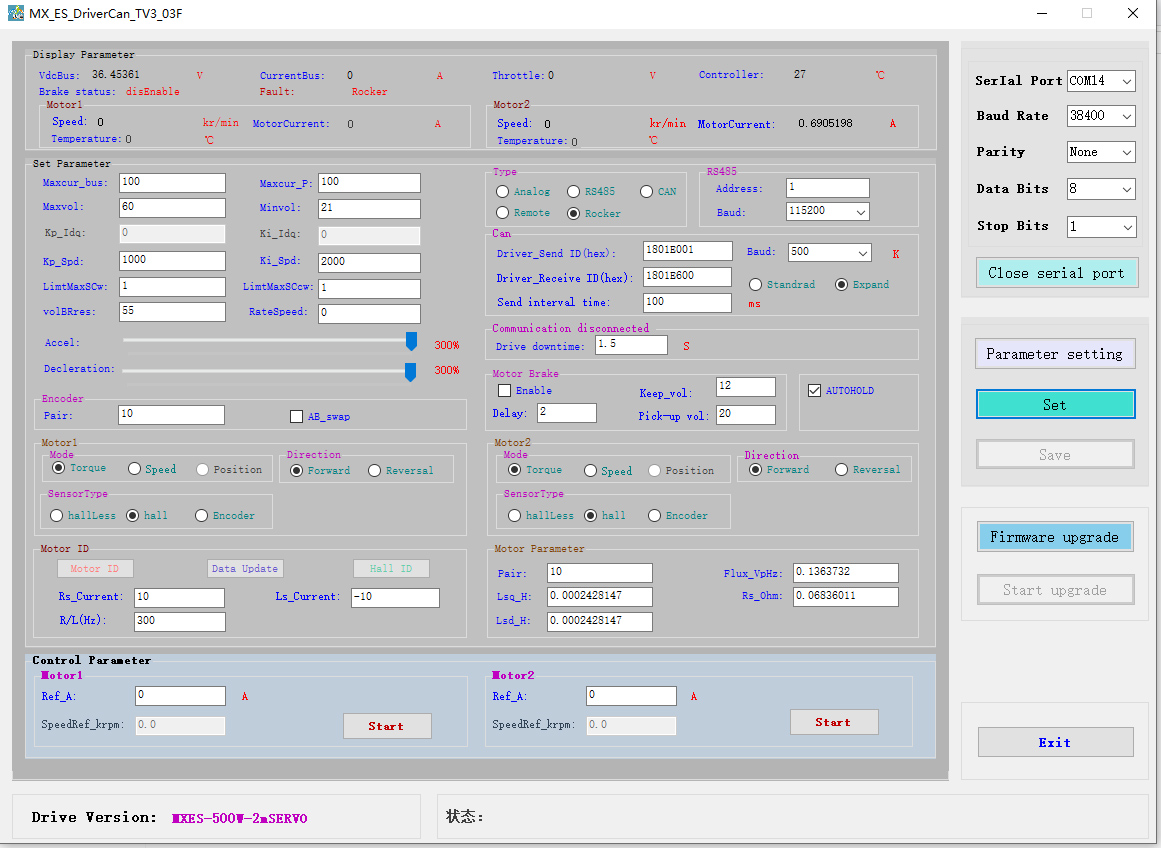

3. how it work when you see from the view of programming window as follows
Category
Tags
4 inch hub motor 5 inch hub motor 6 inch hub motor 8 inch hub motor 8.5 inch motor 10 inch hub motor 12 inch hub motor 13 inch hub motor 14 inch hub motor 15 inch hub motor 16 inch electric bike conversion kit 16 inch hub motor 20 inch hub motor 90mm hub motor 250W electric bike conversion kit 250w motor 350w motor 500W electric bike conversion kit 500w motor 800w motor 1000W electric bike conversion kit 1000w motor 3000w scooter motor 3500w hub motor disc brake motor disc braking motor drum brake hub motor e bike motor electric motorcycle motor electric scooter motor electric scooter motor kit electric trike kit electric wheelbarrow motor electric wheelchair motor Geared motor high speed motor hub motor with encoder in wheel hub motor low speed high torque motor mono shaft motor pneumatic hub motor pu tire motor servo hub motor single shaft hub motor wheelchair motor kit
19 responses to “24v-36v 40A electric wheelchair joystick controller”
I also have the issue of not being able to save the data after motor ID. after motor ID completes all buttons are not clickable. Sounds like this issue was never solved. Stay away from this controller.
I have tried to program the wheelchair joystick controller, but it did not work.
Most likely reason is that the screen for the parameter settings is incomplete. The lower line with the buttons “Stop motor ID” and “Data Update” are missing. As a consequence I cannot save the motor data to the controller and cannot continue with “Hall ID”. There seems to be something wrong with your Download of the software.
Please help me, Piet Noordzij
Hi , I am trying to programme my controller with the MXES_WCDCS_ ProgramV2.2 but I can’t see the “Motor Stop ID” or the “Data Updata” buttons on my computer screen, even if I maximise or minimise the screen. Also when i try to do the Hall ID config, as soon as i move the joystick i get a “Connect Busy” message on the “Operation Status: ” display. Can you tell me how to fix this please.
try to use the download button to save the data and when it get connect busy message, you need to click connect button to connect the controller with computer again.
It won’t let us download the data after “Motor ID” has gone through its cycle as the download button is unclickable. We downloaded the software and also Don’t have “Save the data” or “Stop motors” buttons. Is there by chance a mistake with the software given on the website where downloading that software app doesn’t give us the full version?
it may be broken by anti-virus software.
ever get this resolved?

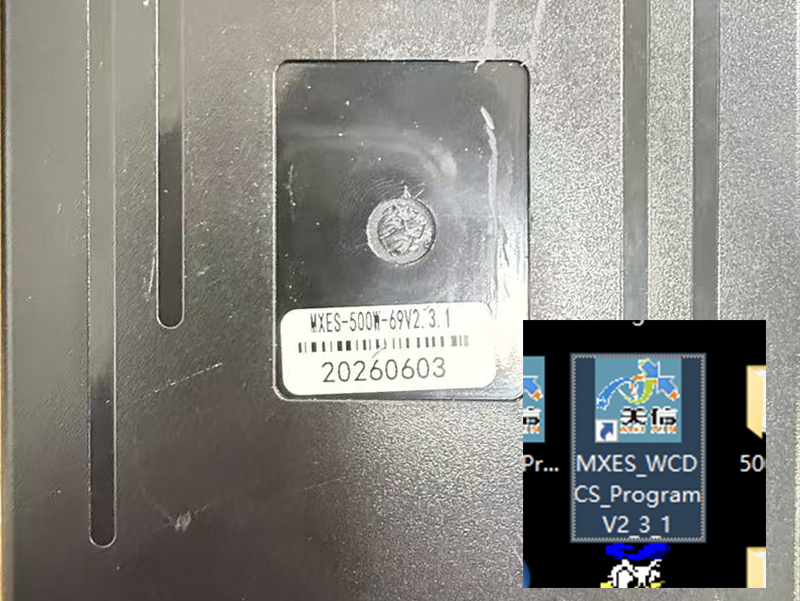

Yes, we have new version software
Hi there,
I am interested in this controller but I need a separate control for Speed and a separate control for direction.
Is this something you can offer?
sorry. we do not have such control method.
How can I order this controller?
please email us at sales@uumotor.com
I would like to use this controller for a four wheel drive scootmobile. This means that on each side two motors have to be controlled. Is this possible or do I need extra items?
We have a new dual drive controller like this.
Thank you, is this the model MX-WCDCS24?
the outsize is the same, but the inside firmware is different.
How can I order this controller?
I am also interested in a 4 wheel drive setup with this type of controller – same as Piet. How do I order this?
it usually takes 5 days.
